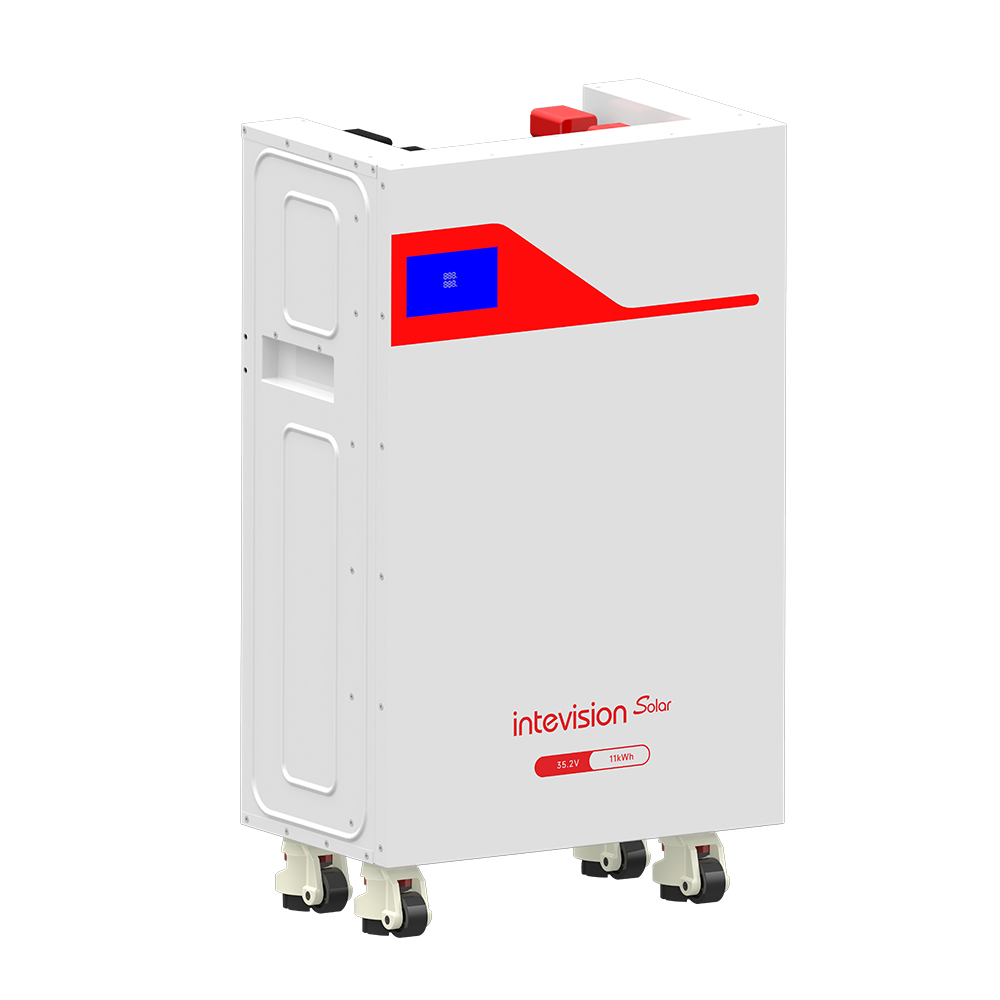

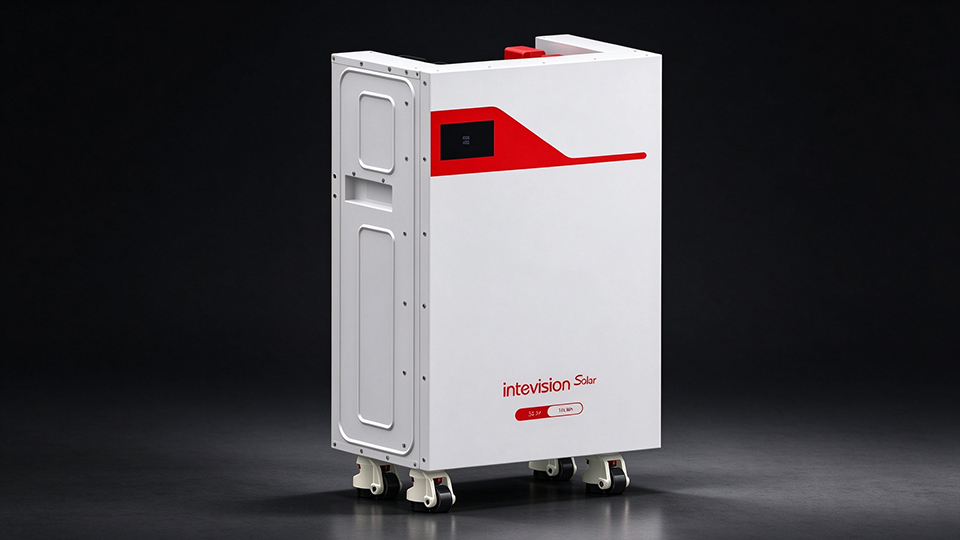

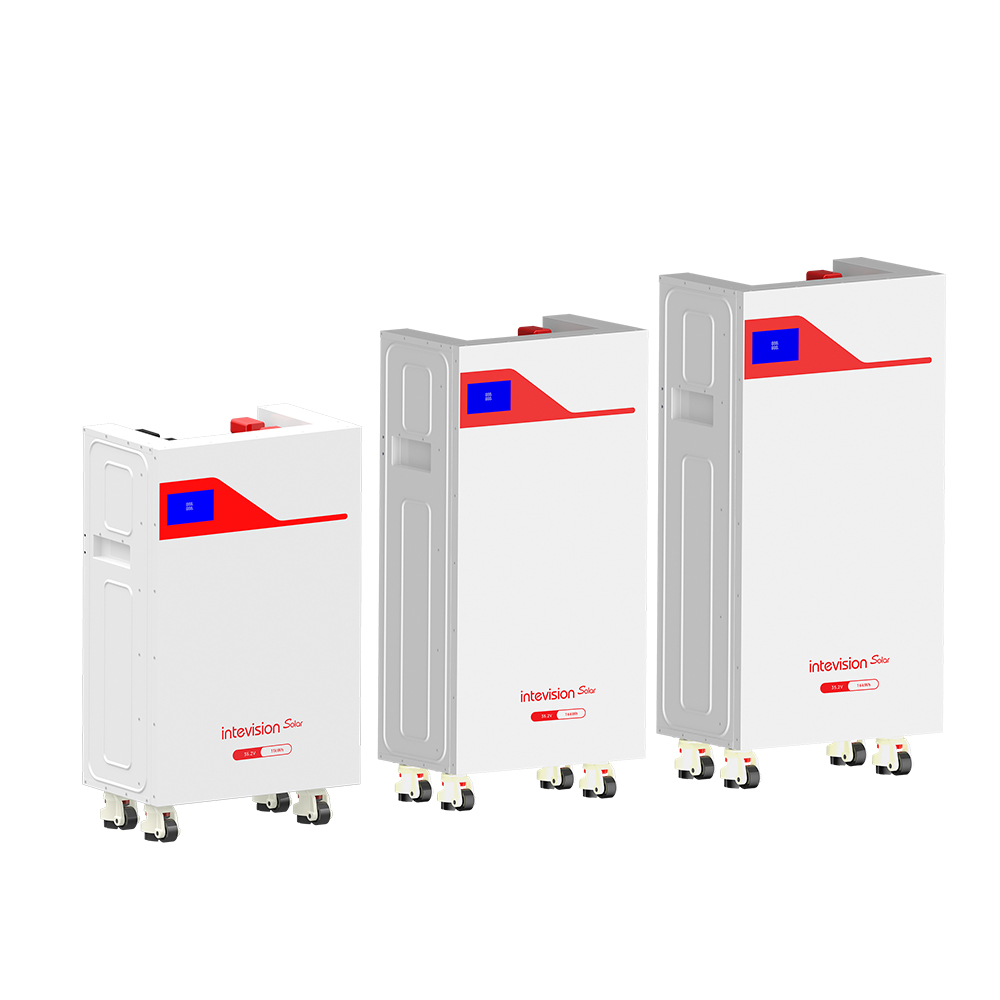

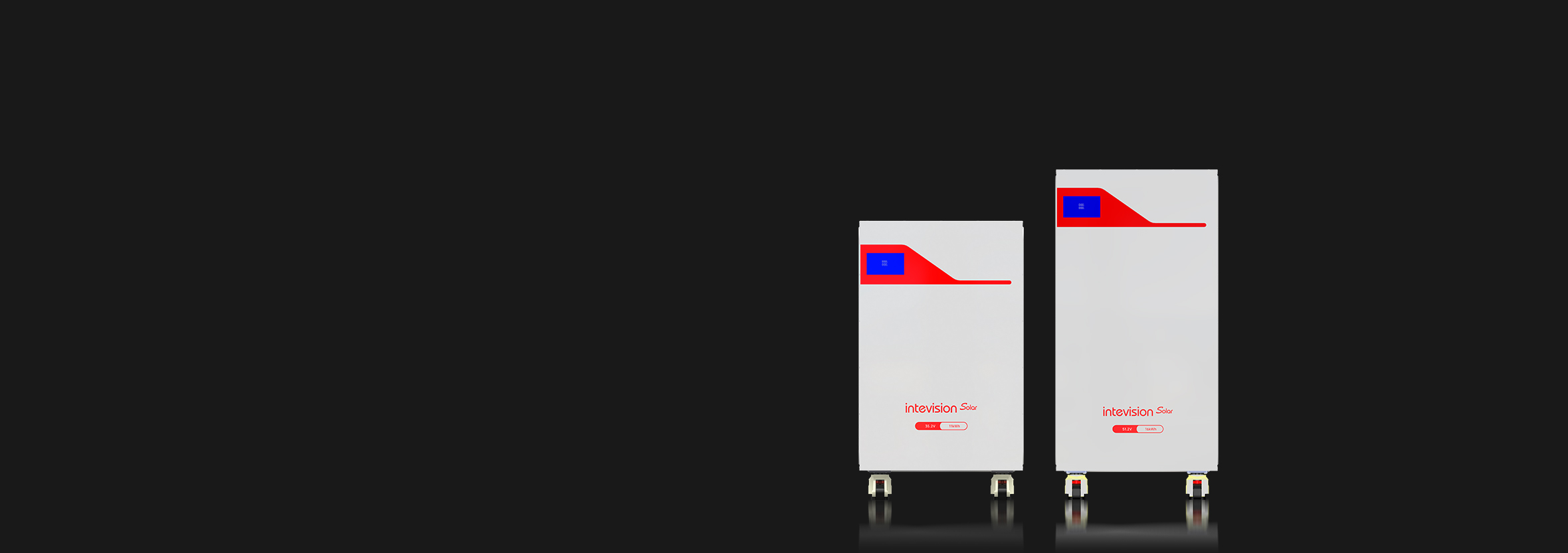

SI-C series

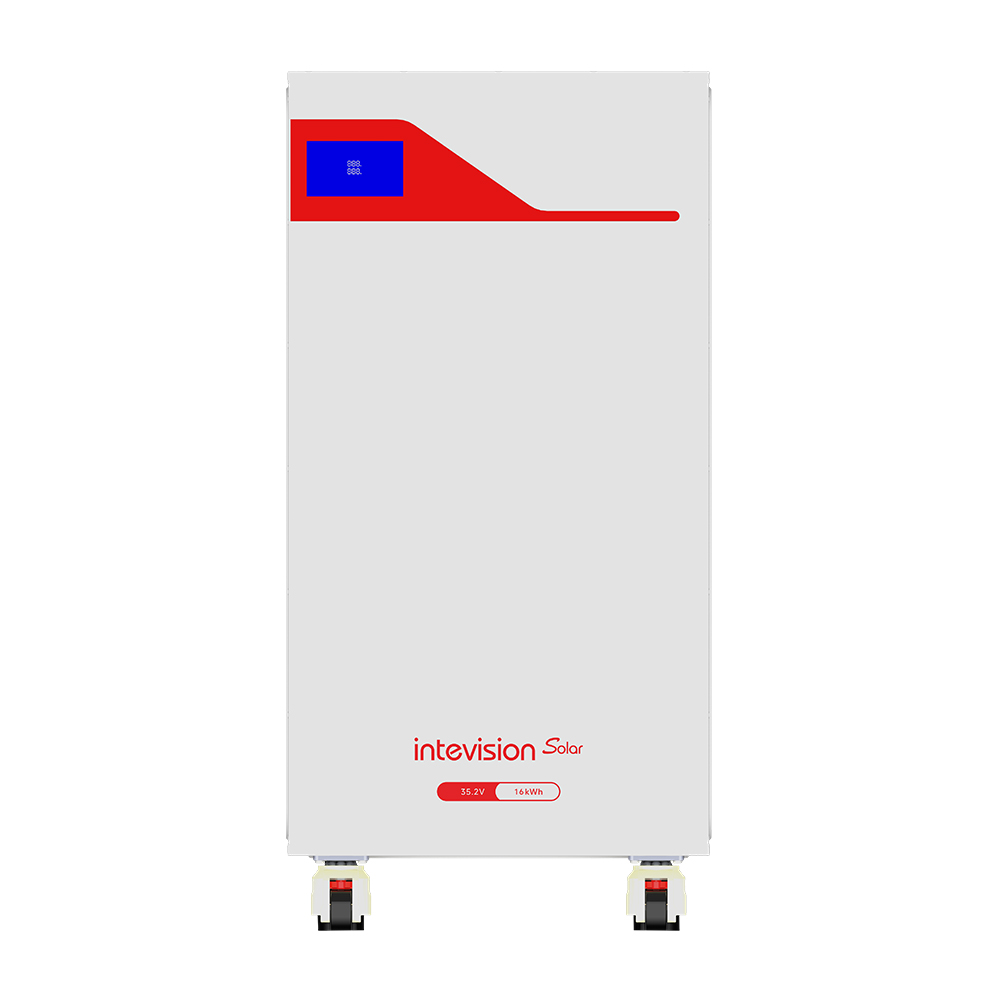

11kWh / 16kWh
SI-C series
11kWh / 16kWh
IP44 Level
● High level protection
Long Battery Life
● 6000 cycles life (DOD 80%)
Safety
● High-density LFP battery
Stable & Reliable
● Advanced BMS management
Product Model
Basic Information
Cell Type
LFP
LFP
LFP
Cell Configuration
1P11S
1P16S
1P16S
Nominal Voltage (V)
35.2
51.2
51.2
Voltage Range(VDC)
35.2-40.15
51.2-58.4
51.2-58.4
Nominal Capacity (Ah)
314
314
588
Nominal Energy / Module (KWh)
11.088
16.076
30.110
Communication Protocol
CAN/RS485/RS232
CAN/RS485/RS232
CAN/RS485/RS232
Max. Number of Parallel Connections
15
15
15
Cycle Life
8000 cycles (25°C@70% DOD)
8000 cycles (25°C@70% DOD)
6000 cycles (25°C@70% DOD)
Protection MechanismBasic Information
Temperature Protection
Over-current Protection
Short-circuit Protection
Over-charge Protection
Over-discharge Protection
Low-voltage Protection
Over-current Protection
Short-circuit Protection
Over-charge Protection
Over-discharge Protection
Low-voltage Protection
Temperature Protection
Over-current Protection
Short-circuit Protection
Over-charge Protection
Over-discharge Protection
Low-voltage Protection
Over-current Protection
Short-circuit Protection
Over-charge Protection
Over-discharge Protection
Low-voltage Protection
Temperature Protection
Over-current Protection
Short-circuit Protection
Over-charge Protection
Over-discharge Protection
Low-voltage Protection
Over-current Protection
Short-circuit Protection
Over-charge Protection
Over-discharge Protection
Low-voltage Protection
Charging Parameters
Recommended Charging Current
120A
120A
200A
Recommended Charging Voltage
35.2V
51.2V
51.2V
Max. Charging Voltage
40.15V
58.4V
58.4V
Discharging Parameters
Max. Discharging Current
120A
120A
200A
Recommended Battery Discharge Cut-off Voltage
27.5V
40V
40V
General Parameters
Dimension
700*417*248mm
845*417*248mm
/
Protection Rating
IP44
IP44
IP44
Net Weight
/
/
/
Shell Material
Sheet Metal
Sheet Metal
Sheet Metal
Installation Method
Floor type
Floor type
Floor type
Certification & Safety Standard
Safety Certification
CE
CE
CE
Transportation Safety Certification
IEC62619 /CE/ MSDS /UN38.3
IEC62619 /CE/ MSDS /UN38.3
IEC62619 /CE/ MSDS /UN38.3
Temperature Parameters
Discharging Temperature
-20~60℃
-20~60℃
-20~60℃
Charging Temperature
0~55°C
0~55°C
0~55°C
Storage Temperature
-20~45°C
-20~45°C
-20~45°C
