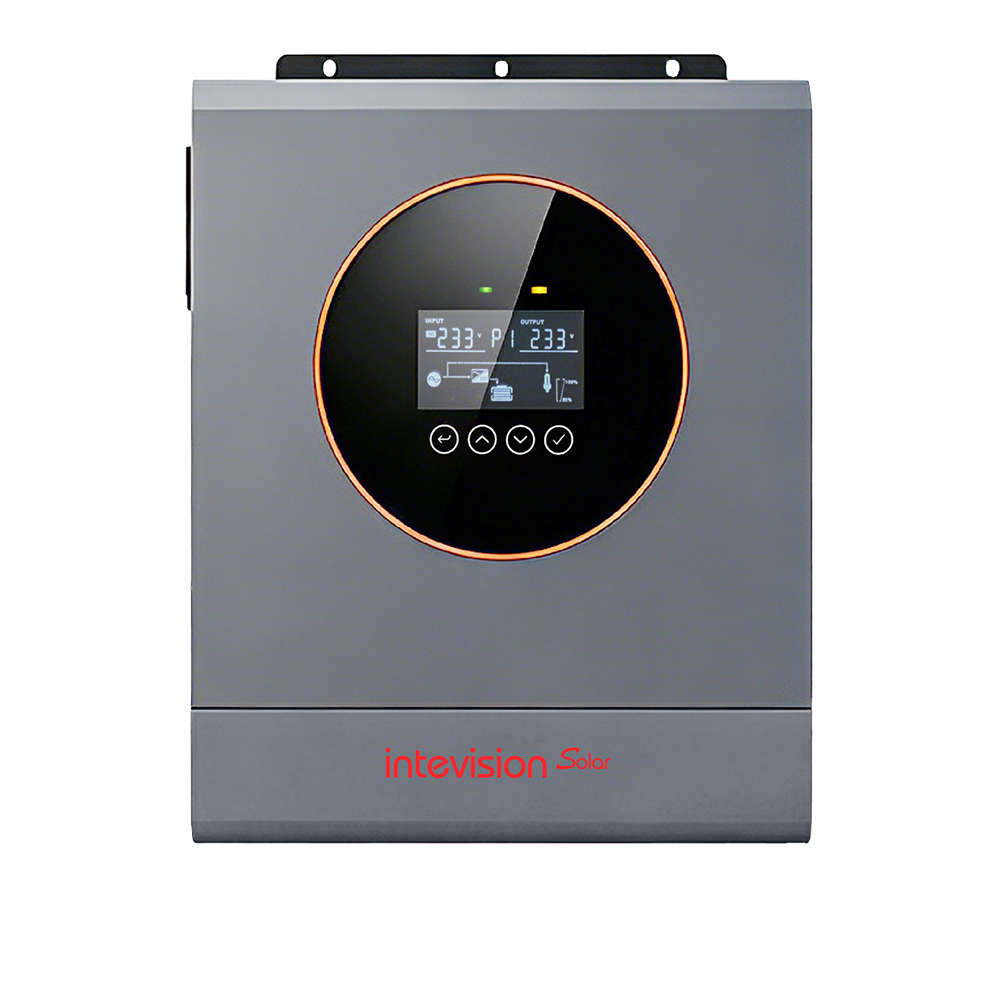

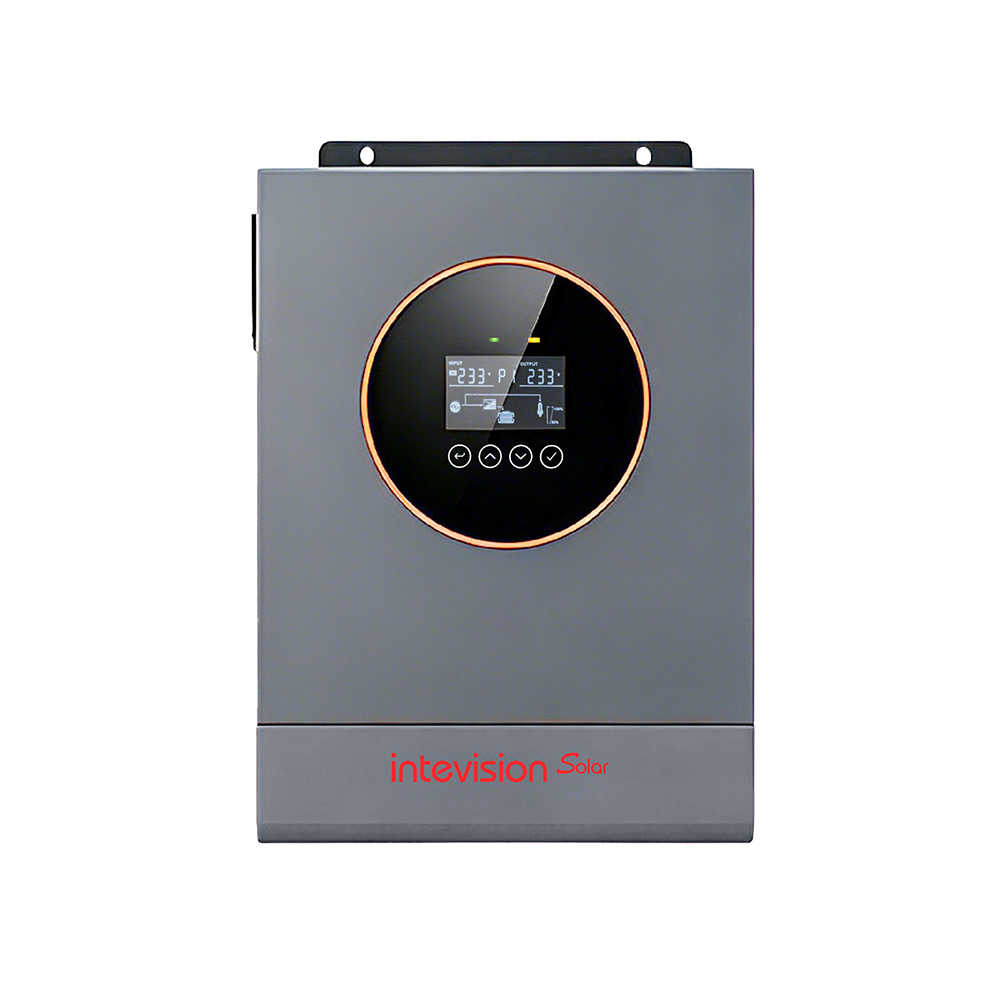

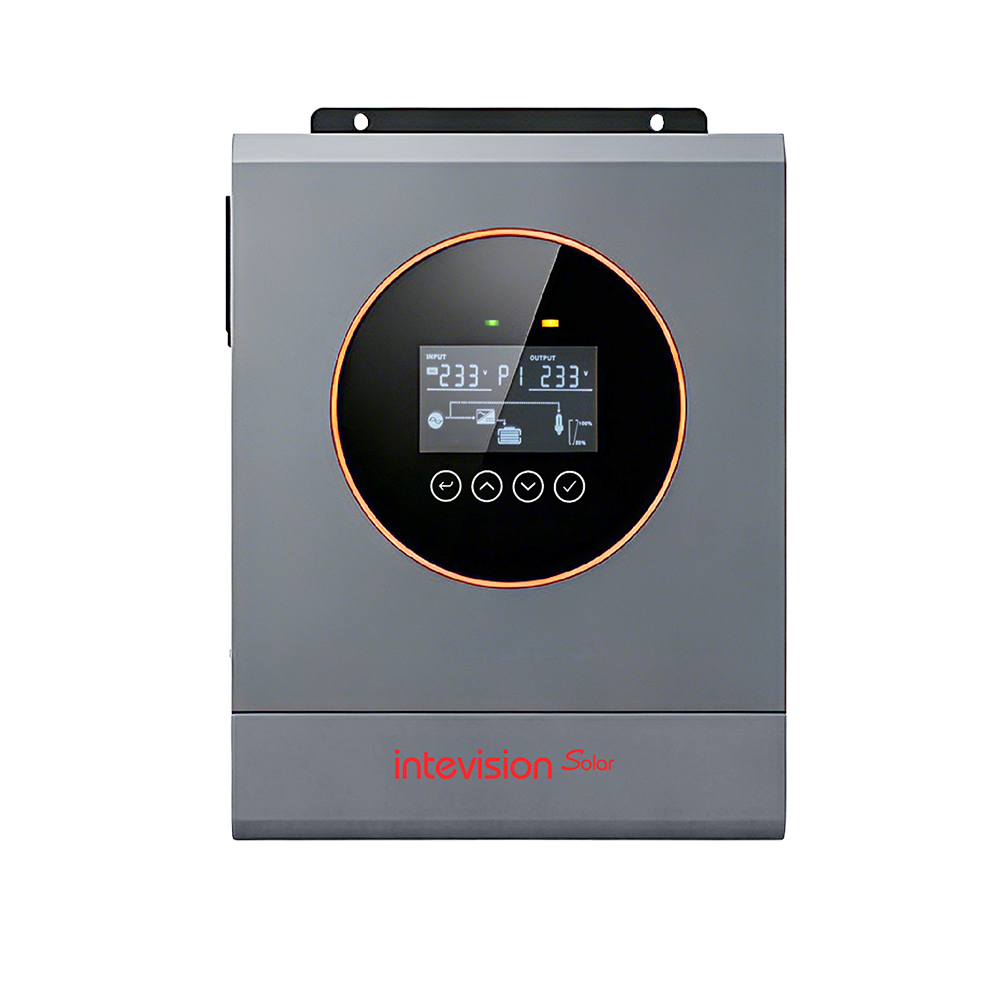

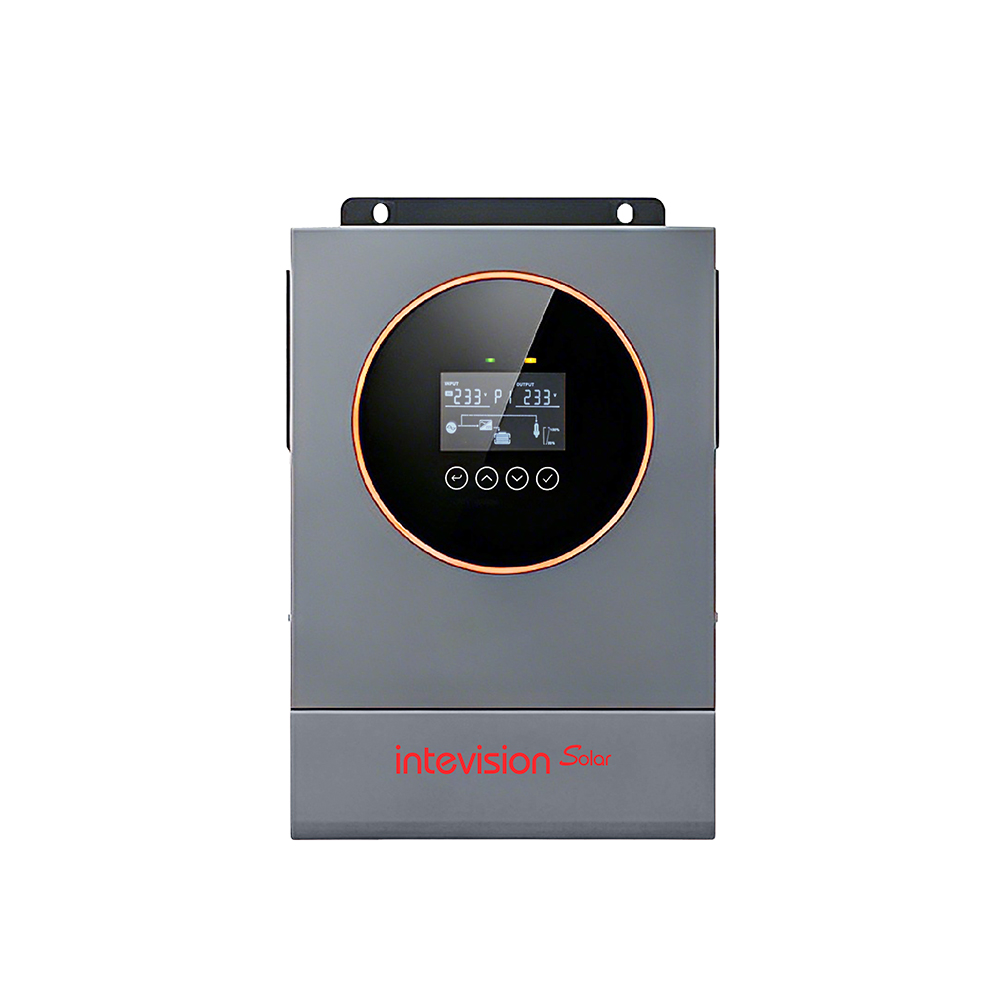

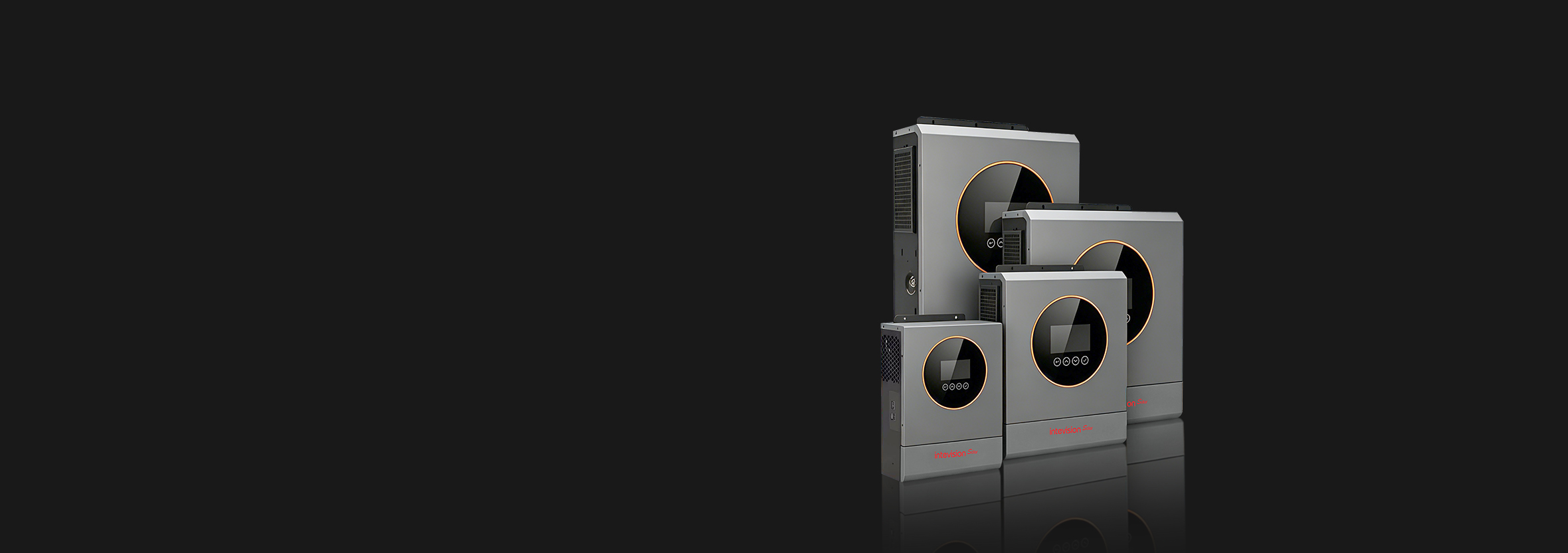

IN-A series
1.2kW / 3.6kW / 6.5kW / 12kW
IN-A series
1.2kW / 3.6kW / 6.5kW / 12kW
BMS
● Support lithium / lead-acid batteries

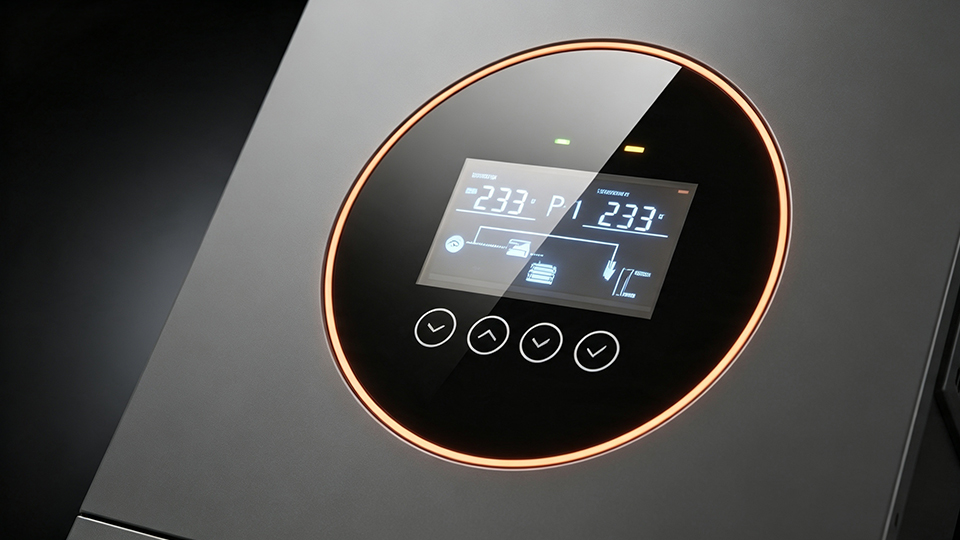

Large Screen
● LCD
Wide PV Input Voltage
● Range 60-500V
Dual AC Out
Rated Capacity 12kW
Product Model
AC Input
Rated Input Voltage (VAC)
208/220/230/240;L+N+PE
208/220/230/240;L+N+PE
208/220/230/240;L+N+PE
220/230/240;L+N+PE
Voltage Range (VAC)
90-280 (APP/GEN mode);
170-264 (UPS mode)
170-264 (UPS mode)
90-280 (APP/GEN mode);
170-264 (UPS mode)
170-264 (UPS mode)
90-280 (APP/GEN mode);
170-264 (UPS mode)
170-264 (UPS mode)
90-280 (APP/GEN mode);
170-264 (UPS mode)
170-264 (UPS mode)
Frequency (Hz)
50/60 (Auto Adaptive)
50/60 (Auto Adaptive)
50/60 (Auto Adaptive)
50/60 (Auto Adaptive)
AC Output
Rated Capacity (kVA/kW)
1.2
3.6
6.5
12
Surge Power (kVA)
2.4
7.2
12
24
Voltage (VAC)
208/220/230/240
208/220/230/240
208/220/230/240
220/230/240
Power Factor (PF)
1
1
1
1
Frequency
50/60Hz±0.1%
50/60Hz±0.1%
50/60Hz±0.1%
50/60Hz±0.1%
Switch Time (ms)
10 (APP/UPS/GEN mode)
10 (APP/UPS/GEN mode),
20(GEN mode)
20(GEN mode)
10 (APP/UPS/GEN mode),
20(GEN mode)
20(GEN mode)
10 (APP/UPS/GEN mode),
20(GEN mode)
20(GEN mode)
Wave Form
Pure Sine Wave
Pure Sine Wave
Pure Sine Wave
Pure Sine Wave
Overload Capacity (Battery Mode)
60s@102%-110% load;
10s@120%-200% load;
10s@120%-200% load;
60s@102%-110% load; 10s@110%-130% load;
3s@130%-150% load; 0.2s@>150% load;
3s@130%-150% load; 0.2s@>150% load;
1min@102%~110% load;
10s@ > 110% load
10s@ > 110% load
1min@102%~125% load;
10s@ > 125% load
10s@ > 125% load
Max. Efficiency (Battery Mode)
90%@12VDC
92.7%@24VDC
94%@48VDC
94%@48VDC
Parallel Quantity
NA
NA
NA
NA
Charger (PV/AC)
Solar Charger Type
MPPT
MPPT
MPPT
Dual MPPTs
Max. PV input current / power
18A / 800W
18A / 5000W
27A / 9000W
Using One MPPT: 27A/9KW
Using Two MPPTs: 22.5A/Per MPPT, 15kW/Total
Using Two MPPTs: 22.5A/Per MPPT, 15kW/Total
MPPT Range@Operating Voltage (VDC)
17-115
40-450
60-450
60-450
Max. PV Open Circuit Voltage (VDC)
115
500
500
500
Max. PV Charge Current (A)
50
100
120
160
Max. AC Charge Current (A)
50
100
120
160
Max. Charge Current (PV+AC) (A)
100
100
120
160
Battery
Normal Voltage (VDC)
12
24
48
48
Floating Charge Voltage (VDC)
13.8
27
54
54
Overcharge Protection (VDC)
15
30.5
61
61
Battery Type
Lead-acid /Lithium
Lead-acid /Lithium
Lead-acid /Lithium
Lead-acid /Lithium
Interface
HMI
LCD
LCD
LCD
LCD
Interface
RS232/RS485 (optional)
CAN (optional)
CAN (optional)
RS232/RS485/CAN/Dry Contact
RS232/RS485/CAN/Dry Contact
RS232/RS485/CAN/Dry Contact
Monitoring
WiFi (optional)
WiFi (optional)
WiFi (optional)
WiFi (optional)
General Data
Ingress Protection
IP21
IP21
IP21
IP21
Operating Temperature
-10 °C-60 °C
-10 °C-60 °C
-10 °C-60 °C
-10 °C-60 °C
Relative Humidity
5%-95% (Non-condensing)
5%-95% (Non-condensing)
5%-95% (Non-condensing)
5%-95% (Non-condensing)
Storage Temperature
-15 °C-60 °C
-15 °C-60 °C
-15 °C-60 °C
-15 °C-60 °C
Net Weight (kg)
3.5
6.4
8.4
8.4
Dimensions (H"W*D)
301*217*97mm
420*284*94mm
410*336*110mm
495*425*120mm
Max. Operating Altitude
4000m (Derating above 1000m)
4000m (Derating above 1000m)
4000m (Derating above 1000m)
4000m (Derating above 1000m)
Activation
AC Activation
YES
/
/
/
PV Activation
YES
/
/
/
