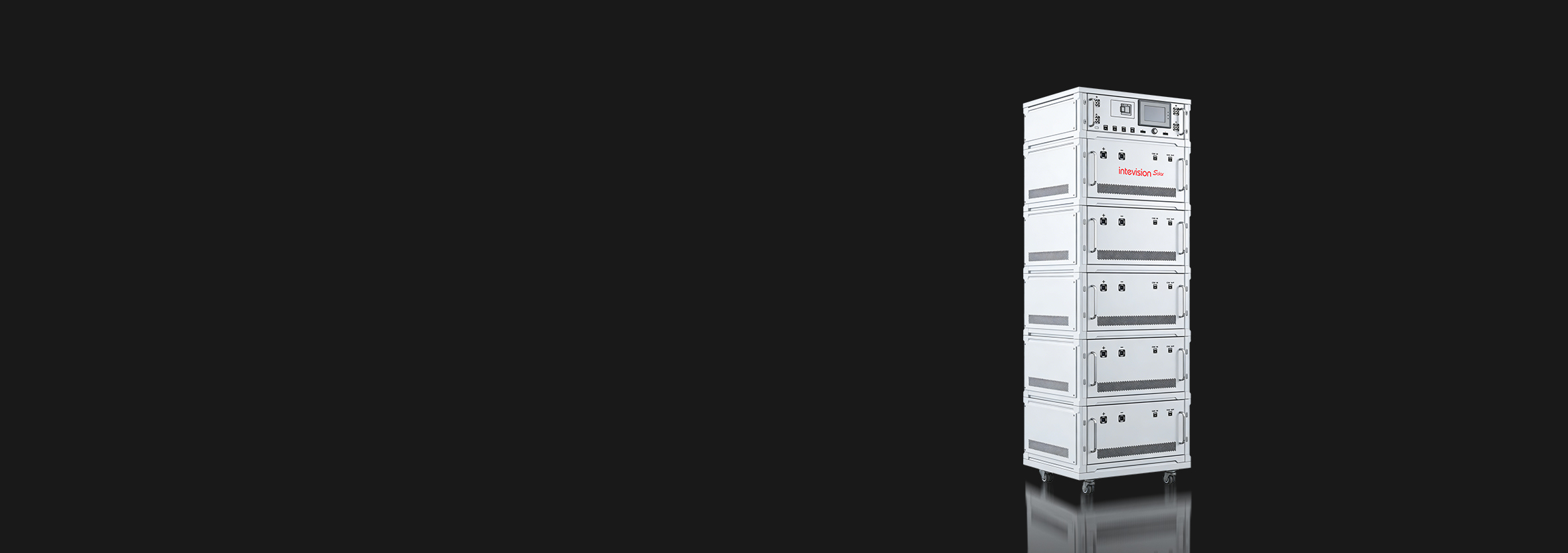

SI-K series

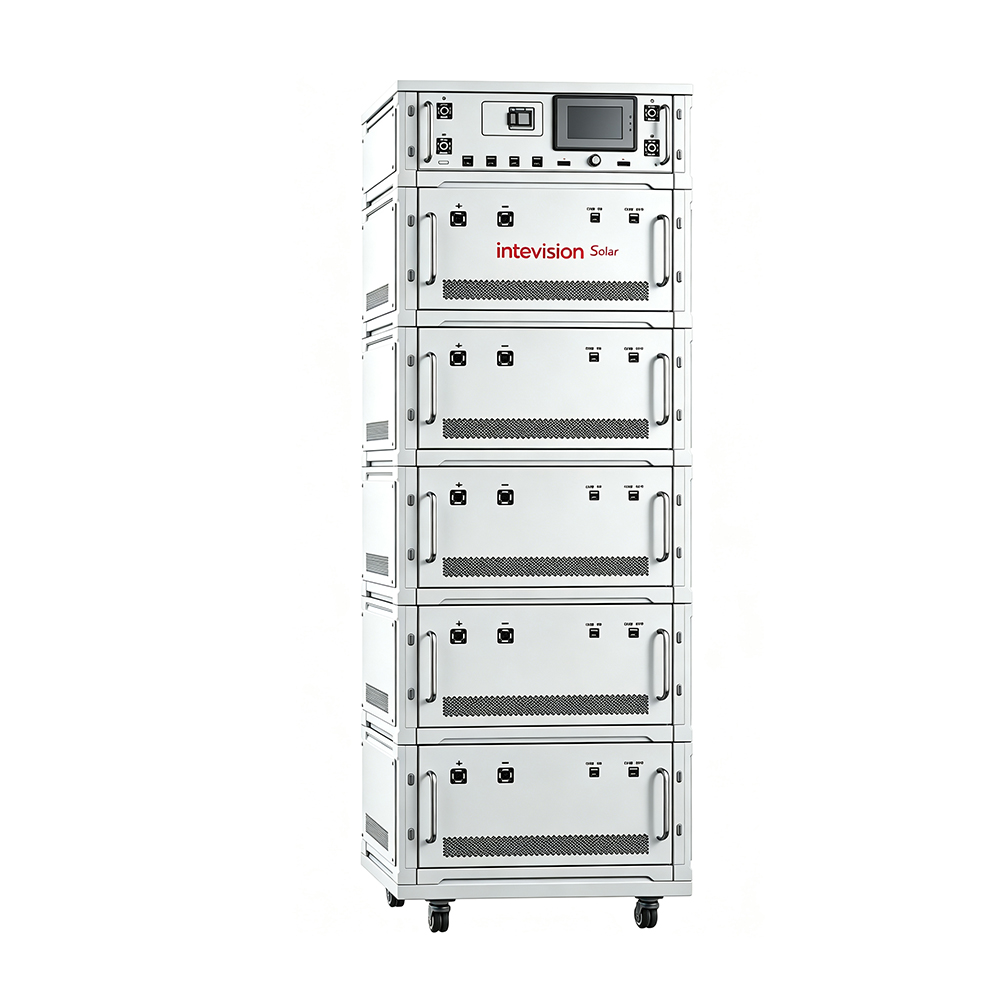

29.952kWh / 67.2kWh / 128.6144kWh
SI-K series
29.952kWh / 67.2kWh / 128.6144kWh
Safety
● High security
● Intelligent energy managemen
Modular Design
● High energy density and modular structure
High-voltage
● High-voltage platform design
Long Battery Life
● High reliability and long lifespan
Product Model
Product Specifications
Nominal capacity
104Ah
280Ah
314Ah
Rated voltage
288V
240V
409.6V
Grouping scheme
90S1P
95S1P
128S1P
Operating voltage range
225~324V
202.5~273.75V
345.6~467V
Rated energy
29.952KWh
67.2KWh
128.6144KWh
Rated charging voltage
324V
273.75V
467.2V
Standby charging voltage
306-315V
255-270V
435.2-448V
Rated charging current
20A
56A
60A
Maximum continuous charging current
100A
200A
200A
Rated discharge current
20A
56A
60A
Maximum continuous discharge current
100A
200A
100A
Peak discharge current
105A@2S/110A@1S
/
/
Cycle life
≥3000
≥8000
≥8000
Chassis dimensions(L*H*D)
442*132*450mm
442*250*680mm
442*250*680mm
Rack size
502*450*1275/
582*450*1100mm
582*450*1100mm
502*680*1525mm
502*680*1275/
502*680*1100mm
502*680*1100mm
Battery box weight
≈ 40kg
≈ 110kg
≈123kg
Total weight
≈ 260kg
≈ 580kg
≈ 1050kg
Operating Temperature
Charge：0~55°C
Discharge：-20~60°C
Discharge：-20~60°C
Charge：0~55°C
Discharge：-20~60°C
Discharge：-20~60°C
Charge：0~55°C
Discharge：-20~60°C
Discharge：-20~60°C
Protection level
IP20
IP20
IP20
