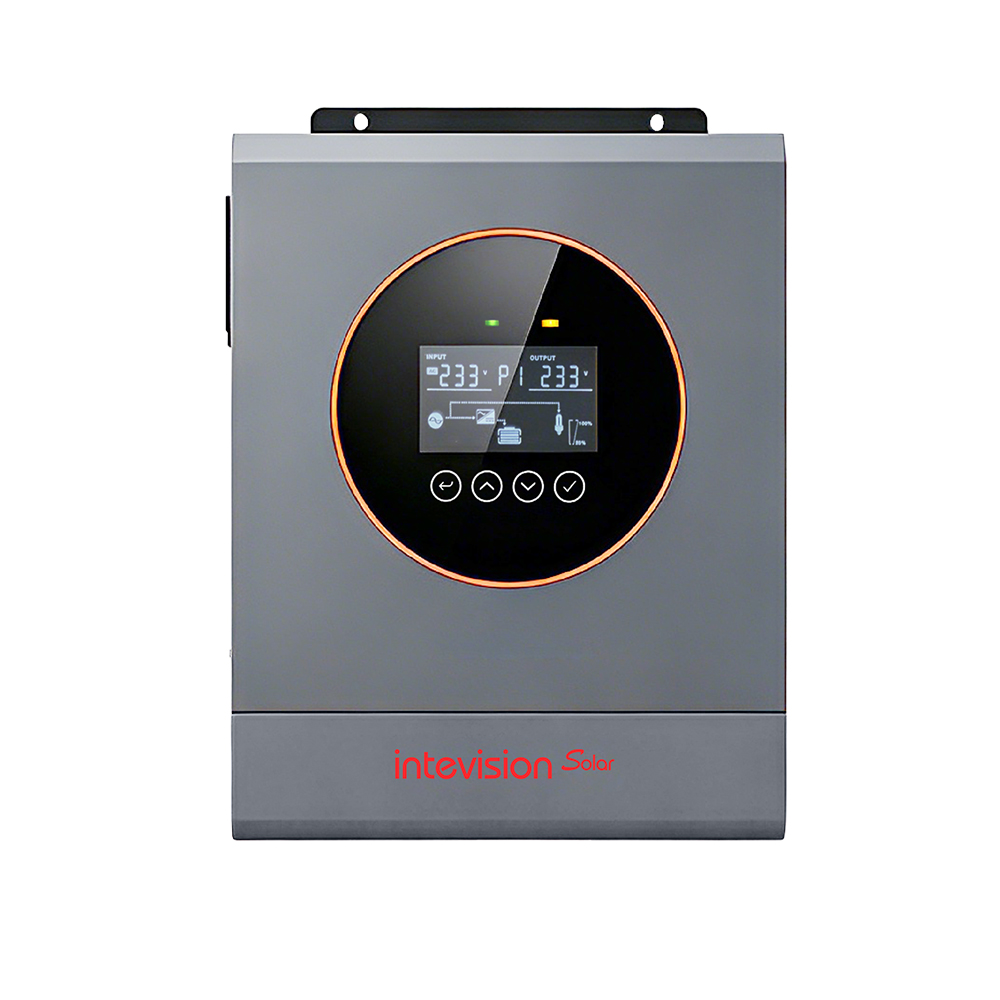

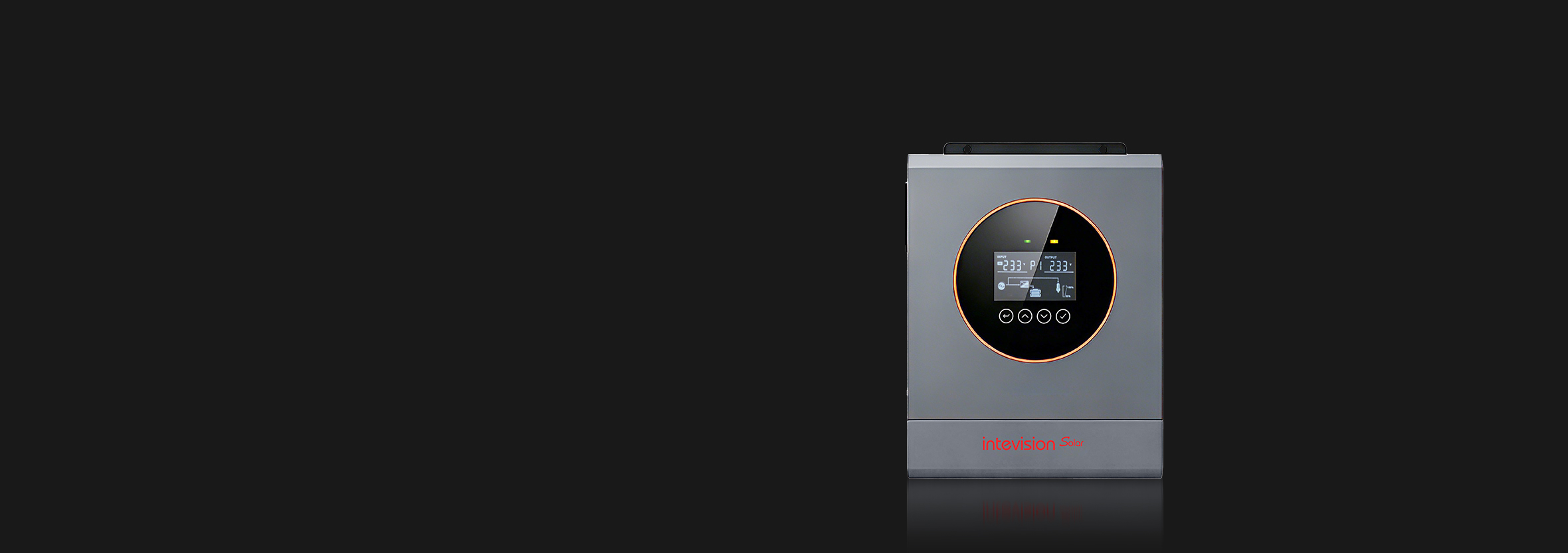

IN-AP series
6.5kW
IN-AP series
6.5kW
Wide PV Input Voltage
● Range 60-500V
Parallel
● The maximum number of parallel machines is 9
BMS
● Support lithium / lead-acid batteries
Dual AC Out
● Dual AC Out
Product Model
AC Input
Rated Input Voltage (VAC)
208/220/230/240;L+N+PE
Voltage Range (VAC)
90-280 (APP/GEN mode); 170-264 (UPS mode)
Frequency (Hz)
50/60 (Auto Adaptive)
AC Output
Rated Capacity (kVA/kW)
6.5
Surge Power (kVA)
12
Voltage (VAC)
208/220/230/240
Power Factor (PF)
1
Frequency
50/60Hz±0.1%
Switch Time (ms)
10 (APP/UPS mode) / 20(GEN mode)
Wave Form
Pure Sine Wave
Overload Capacity (Battery Mode)
1min@102%~110% load; 10s@ > 110% load
Max. Efficiency (Battery Mode)
94%@48VD
Parallel Quantity
9
Charger (PV/AC)
Solar Charger Type
MPPT
Max. PV input current / power
27A / 9000W
MPPT Range@Operating Voltage (VDC)
60-450
Max. PV Open Circuit Voltage (VDC)
500
Max. PV Charge Current (A)
120
Max. AC Charge Current (A)
120
Max. Charge Current (PV+AC) (A)
120
Battery
Normal Voltage (VDC)
48
Floating Charge Voltage (VDC)
54
Overcharge Protection (VDC)
61
Battery Type
Lead-acid /Lithium
Interface

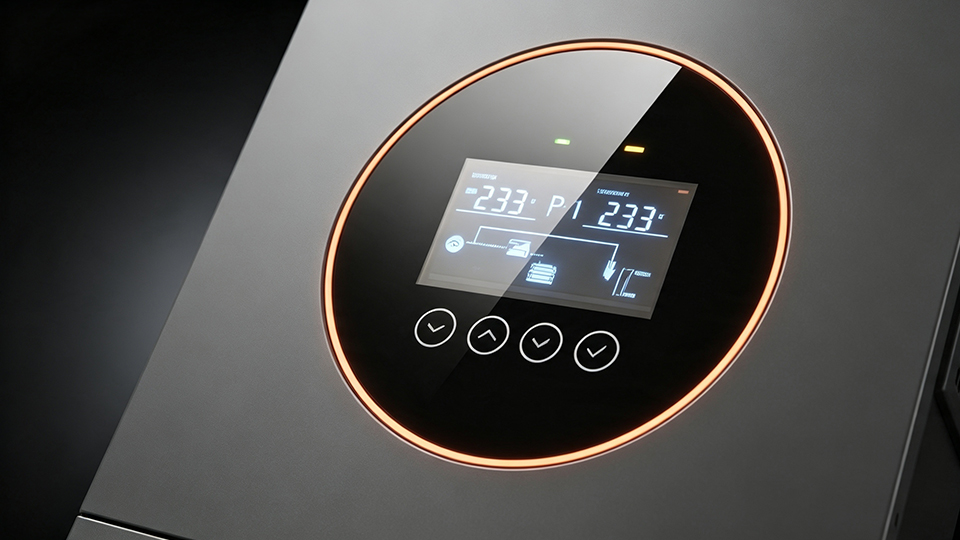

HMI
LCD
Interface
RS232/RS485/CAN/Parallel Interace
Monitoring
WiFi (optional/built-in/external)
General Data
Ingress Protection
IP21
Operating Temperature
-10 °C-60 °C
Relative Humidity
5%-95% (Non-condensing)
Storage Temperature
-15 °C-60 °C
Net Weight (kg)
8.4
Dimensions (H"W*D)
410*336*110mm
Max. Operating Altitude
4000m (Derating above 1000m)
Activation
AC Activation
/
PV Activation
/
