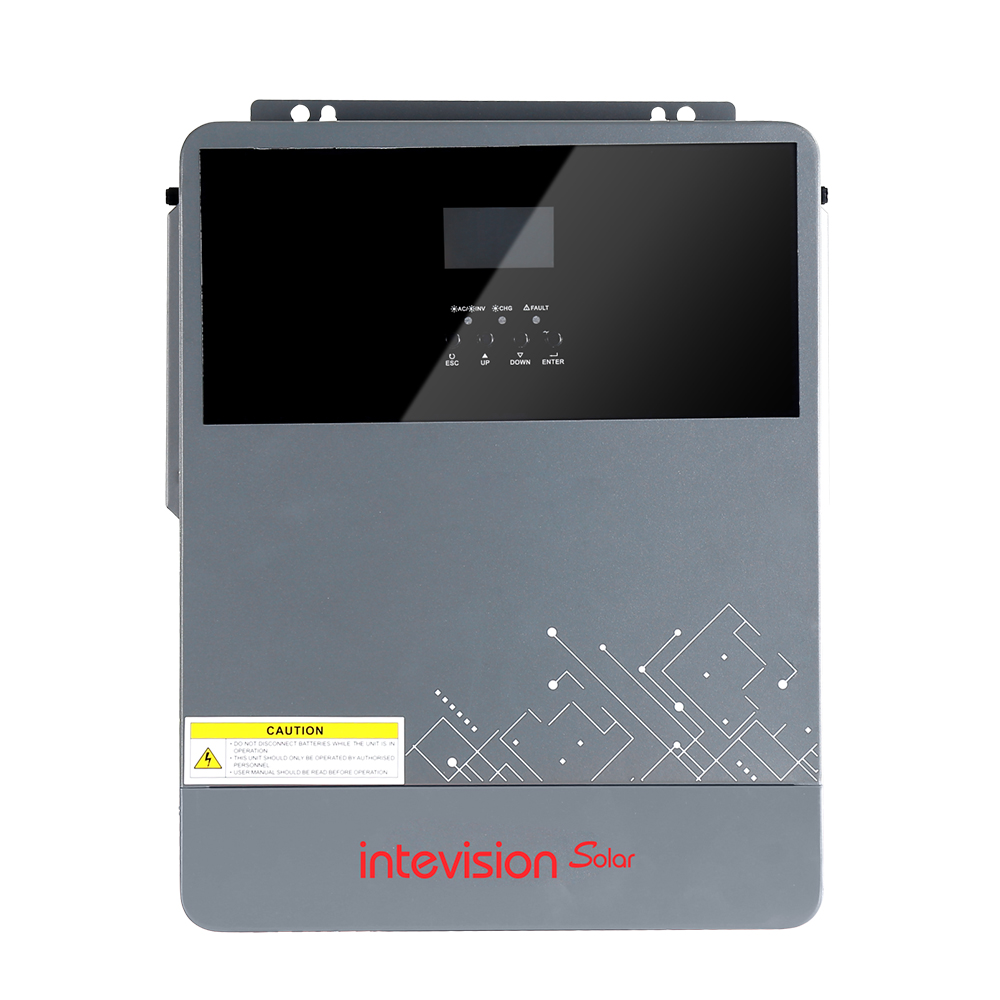

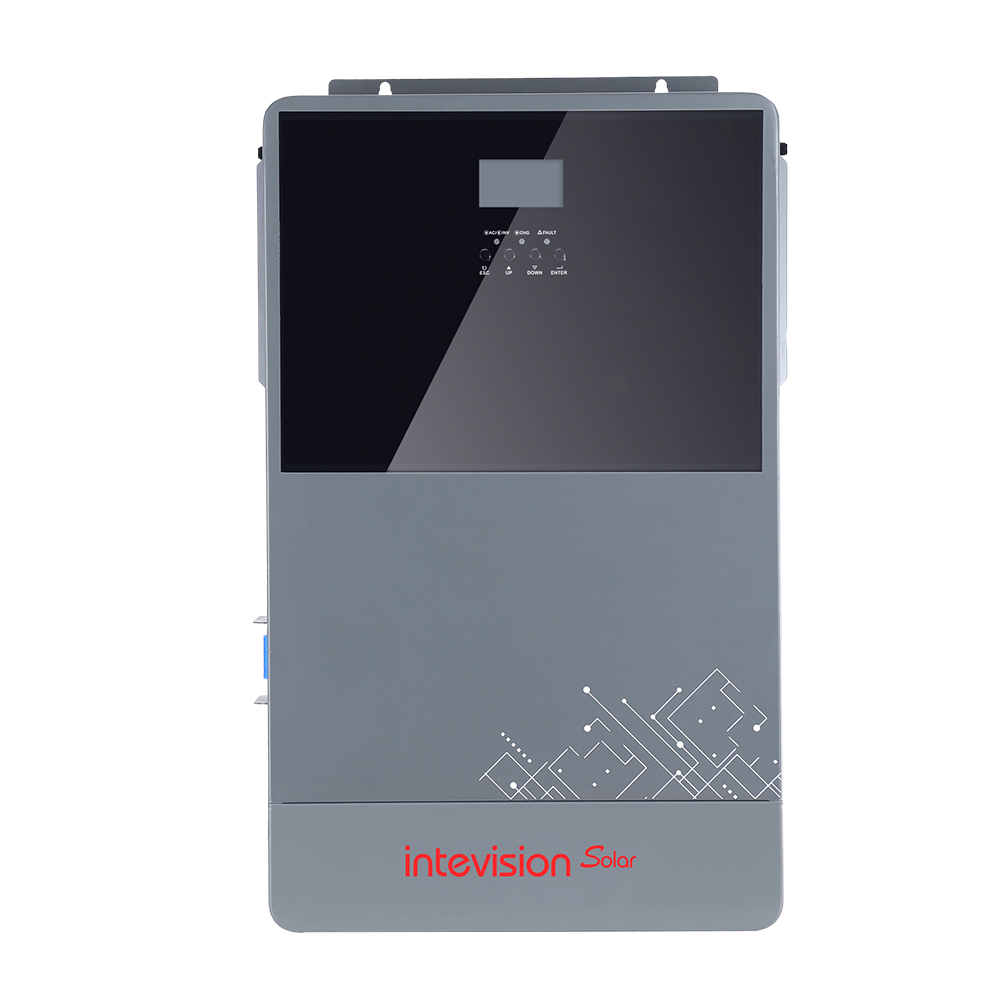

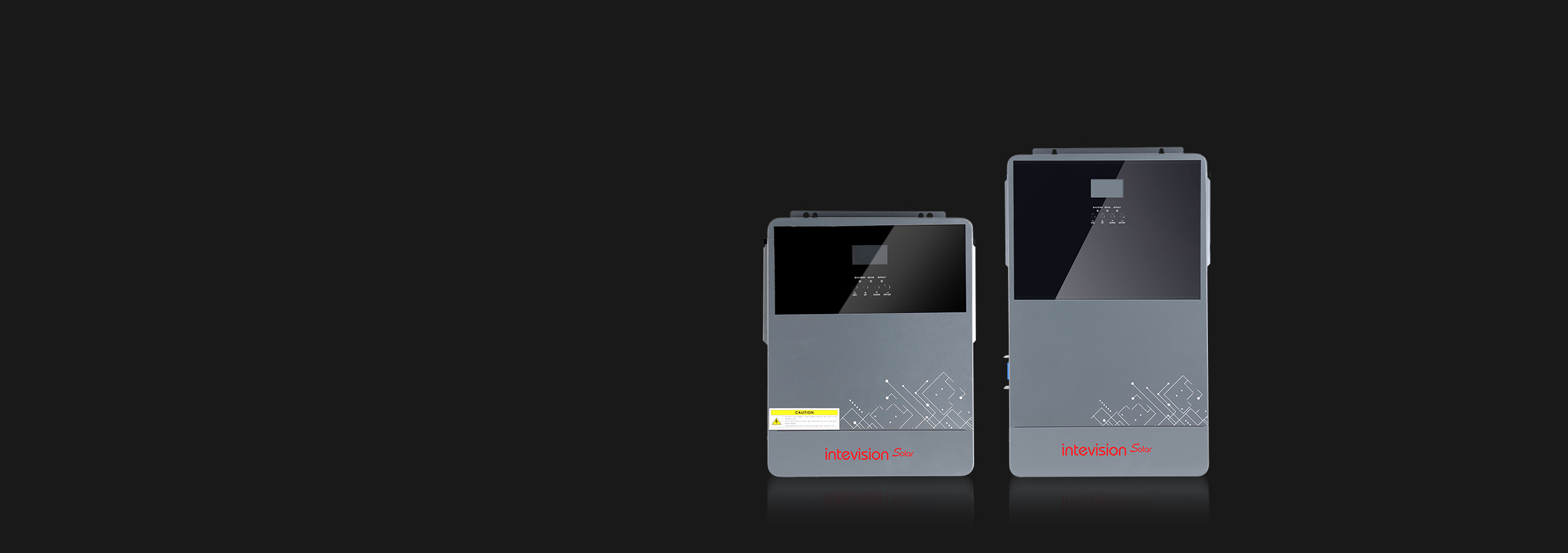

IN-E series
3kW / 6.2kW / 11kW
IN-E series
3kW / 6.2kW / 11kW
Wide PV Input Voltage
● Range 90-500V
Dual MPPTs Input
● Dual MPPTs Input
BMS
● Support lithium / lead-acid batteries
Pure sine wave
● Pure sinusoidal output, strong load capacity, low noise, high conversion efficiency.
Product Model
Input
Input Sources
L+N+PE
L+N+PE
L+N+PE
AC Input
220/230/240AC
220/230/240AC
220/230/240AC
Input Voltage Range
90-280VAC±3V(Normal Mode)
185-264VAC ±3V (UPS Mode)
185-264VAC ±3V (UPS Mode)
90-280VAC±3V(Normal Mode)
185-264VAC ±3V (UPS Mode)
185-264VAC ±3V (UPS Mode)
90-280VAC±3V(Normal Mode)
185-264VAC ±3V (UPS Mode)
185-264VAC ±3V (UPS Mode)
Frequency
50/ 60Hz (Adaptive)
50/ 60Hz (Adaptive)
50/ 60Hz (Adaptive)
Rated Power
3000W
6200W
11000W
Output
Output Voltage
208/220/230/240 AC ±5%
208/220/230/240 AC ±5%
208/220/230/240 AC ±5%
Output Frequency
50/60Hz±0.1%
50/60Hz±0.1%
50/60Hz±0.1%
Output Wave
Pure Sine Wave
Pure Sine Wave
Pure Sine Wave
Transfer Time (Adjustable)
10ms for Computer Equipment.
20ms for Household Equipment
20ms for Household Equipment
10ms for Computer Equipment.
20ms for Household Equipment
20ms for Household Equipment
10ms for Computer Equipment.
20ms for Household Equipment
20ms for Household Equipment
Peak Power
6000VA
12400VA
22000VA
Overload Ability
Battery Mode:
21s@102%~110% Load,
10s@110%~130% Load,
30s@130%~150% Load,
400ms@>150% Load
21s@102%~110% Load,
10s@110%~130% Load,
30s@130%~150% Load,
400ms@>150% Load
Battery Mode:
21s@102%~110% Load,
10s@110%~130% Load,
30s@130%~150% Load,
400ms@>150% Load
21s@102%~110% Load,
10s@110%~130% Load,
30s@130%~150% Load,
400ms@>150% Load
Battery Mode:
21s@102%~110% Load,
10s@110%~130% Load,
30s@130%~150% Load,
400ms@>150% Load
21s@102%~110% Load,
10s@110%~130% Load,
30s@130%~150% Load,
400ms@>150% Load
Peak Efficiency (Battery Mode）
94%
98%
98%
Battery
Rated Voltage
24V DC
48V DC
48V DC
Constant Charging Voltage( Adjustable)
56.4V DC
56.4V DC
56.4V DC
Floate Charging Voltage Adjustable)
54V DC
54V DC
54V DC
Chargers
PV Charging Model
MPPT
MPPT
MPPT
MAX PV Input Power
3000W
6200W
2*5500W
MPPT Tracking Range
40-450V DC
60-500V DC
90-500V DC
Best Voltage
300-400V DC
300-400V DC
300-400V DC
MAX PV Input Voltage
500V DC
500V DC
500V DC
MAX PV Input Current
13A
18A
18A
MAX PV Charging Current
100A
120A
150A
MAX AC Charging Current
60A
80A
120A
MAX Charging Current
100A
100A
150A
Display
LCD Display
Display Running Model
Loads/Input/Output etc.
Loads/Input/Output etc.
Display Running Model
Loads/Input/Output etc.
Loads/Input/Output etc.
Display Running Model
Loads/Input/Output etc.
Loads/Input/Output etc.
Interface
RS232
Baud Rated 2400
Baud Rated 2400
Baud Rated 2400
Communication Port
Lithium Battery BMS Communication Card,
Wifi Card, Dry Contact
Wifi Card, Dry Contact
Lithium Battery BMS Communication Card,
Wifi Card, Dry Contact
Wifi Card, Dry Contact
Lithium Battery BMS Communication Card,
Wifi Card, Dry Contact
Wifi Card, Dry Contact
Parallel Conect Interface
None
None
None
Environments
Operating Temperature
From -10°C to 55°C
From -10°C to 55°C
From -10°C to 55°C
Humidity
20%-95% (Non-condesing)
20%-95% (Non-condesing)
20%-95% (Non-condesing)
Storage Tempeture
From -15°C to 60°C
From -15°C to 60°C
From -15°C to 60°C
Altitude
Altiude Not Over 1000m,
Derating over 1000m,
Max 4000m,
Refer to IEC62040
Derating over 1000m,
Max 4000m,
Refer to IEC62040
Altiude Not Over 1000m,
Derating over 1000m,
Max 4000m,
Refer to IEC62040
Derating over 1000m,
Max 4000m,
Refer to IEC62040
Altiude Not Over 1000m,
Derating over 1000m,
Max 4000m,
Refer to IEC62040
Derating over 1000m,
Max 4000m,
Refer to IEC62040
Noise
≤50db
≤50db
≤50db
Package Size （mm)
512*420*207
512*420*207
737*473*272
Gross weight (KG)
10
11
22
