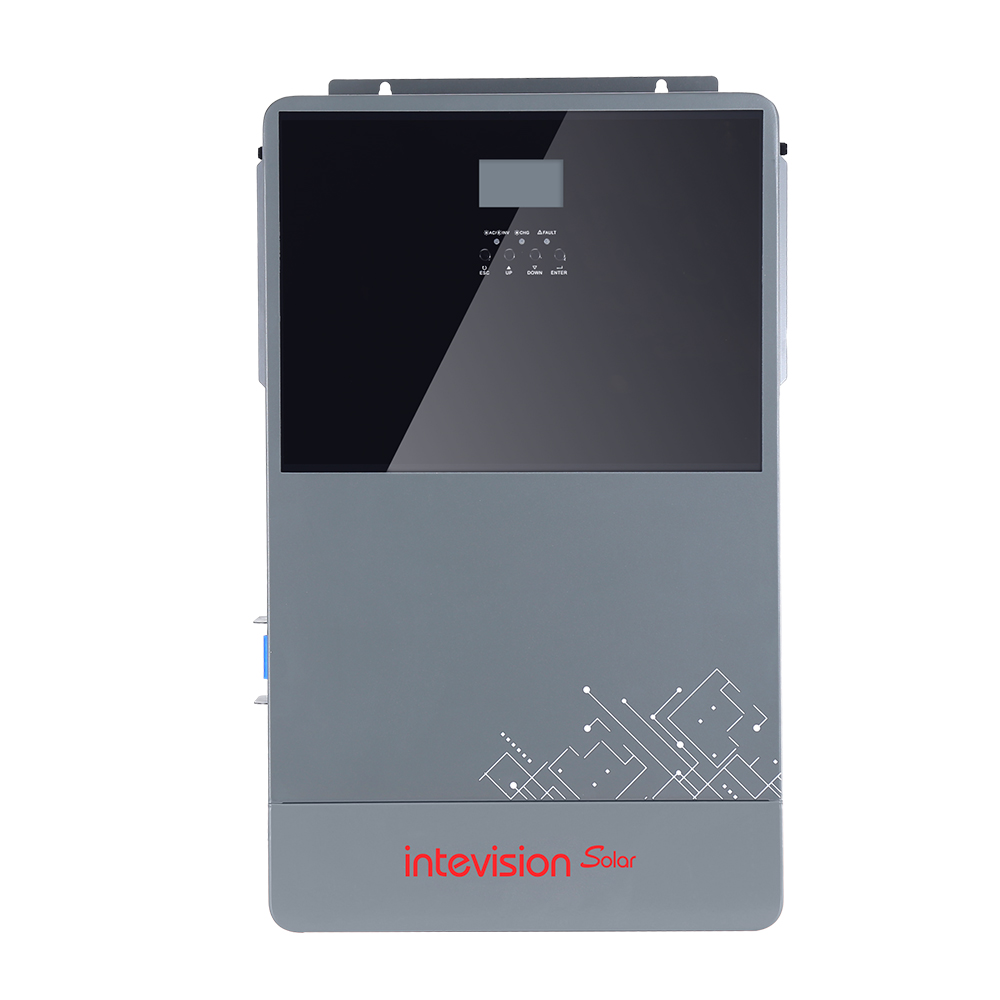

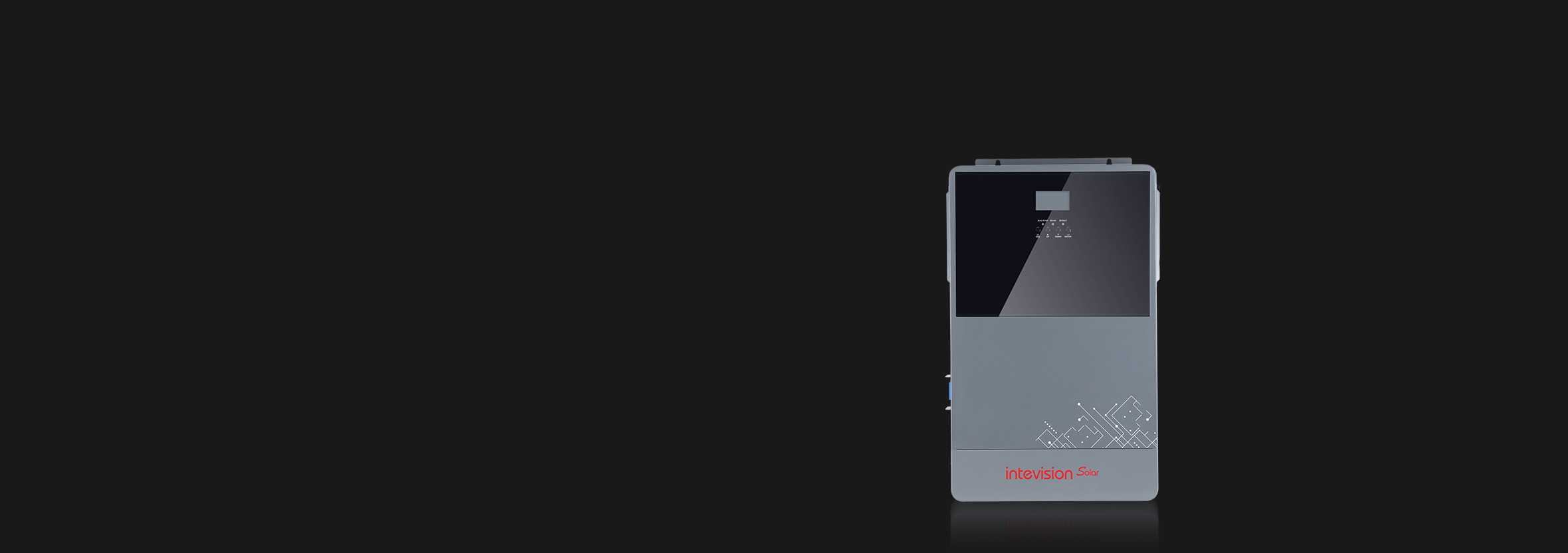

IN-EP series
11kW
IN-EP series
11kW
Wide PV Input Voltage
● Range 90-500V
Parallel
● The maximum number of parallel machines is 6.
Pure sine wave
● Pure sinusoidal output, strong load capacity, low noise, high conversion efficiency.
Dual AC Out
● Dual AC Out
Product Model
Input
Input Sources
L+N+PE
AC Input
220/230/240AC
Input Voltage Range
90-280VAC±3V(Normal Mode)
185-264VAC ±3V (UPS Mode)
185-264VAC ±3V (UPS Mode)
Frequency
50/ 60Hz (Adaptive)
Rated Power
11000W
Output
Output Voltage
208/220/230/240 AC ±5%
Output Frequency
50/60Hz±0.1%
Output Wave
Pure Sine Wave
Transfer Time (Adjustable)
10ms for Computer Equipment.
20ms for Household Equipment
20ms for Household Equipment
Peak Power
22000VA
Overload Ability
Battery Mode: 21s@102%~110% Load,
10s@110%~130% Load,
30s@130%~150% Load,
400ms@>150% Load
10s@110%~130% Load,
30s@130%~150% Load,
400ms@>150% Load
Peak Efficiency (Battery Mode）
98%
Battery
Rated Voltage
48V DC
Constant Charging Voltage( Adjustable)
56.4V DC
Floate Charging Voltage Adjustable)
54V DC
Chargers
PV Charging Model
Dual MPPT
MAX PV Input Power
2*5500W
MPPT Tracking Range
90-500V DC
Best Voltage
300-400V DC
MAX PV Input Voltage
500V DC
MAX PV Input Current
18A
MAX PV Charging Current
150A
MAX AC Charging Current
120A
MAX Charging Current
150A
Display
LCD Display
Display Running Model
Loads/Input/Output etc.
Loads/Input/Output etc.
Interface
RS232
Baud Rated 2400
Communication Port
Lithium Battery BMS Communication Card
Wifi Card, Dry Contact
Wifi Card, Dry Contact
Parallel Conect Interface
YES (Up to 6 Units)
Environments
Operating Temperature
From -10°C to 55°C
Humidity
20%-95% (Non-condesing)
Storage Tempeture
From -15°C to 60°C
Altitude
Altiude Not Over 1000m,
Derating over 1000m, Max 4000m,
Refer to IEC62040
Derating over 1000m, Max 4000m,
Refer to IEC62040
Noise
≤50db
Package Size （mm)
737*473*272
Gross weight (KG)
22
