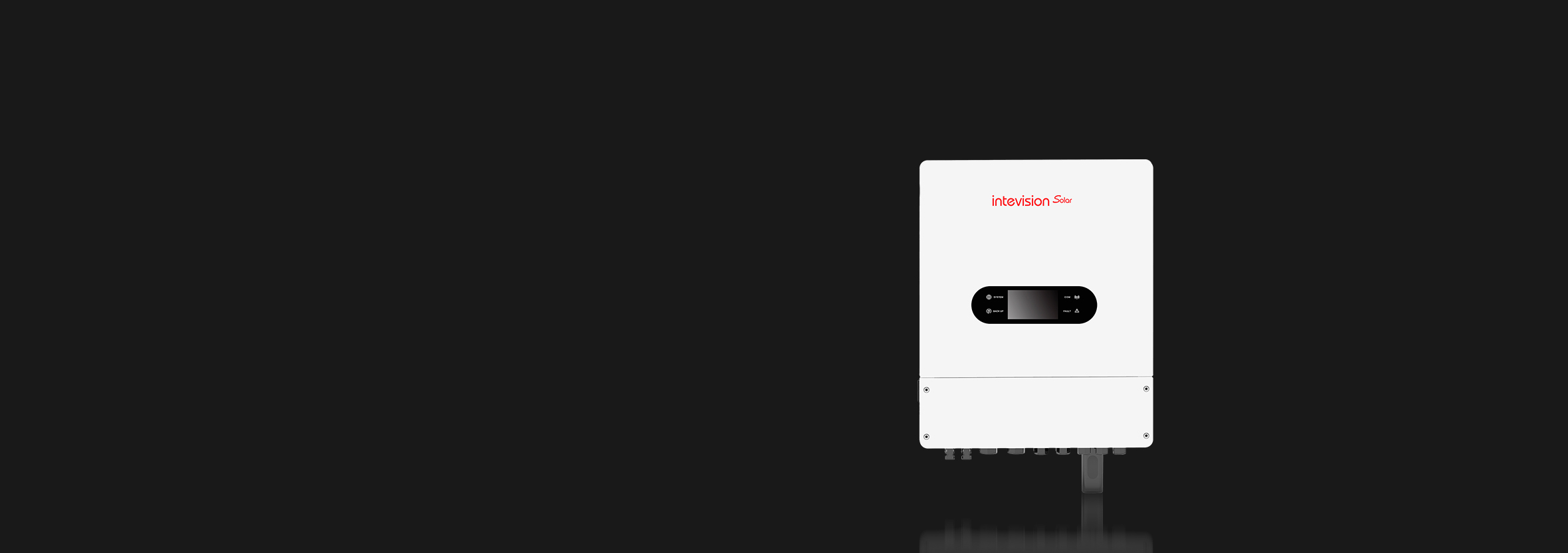

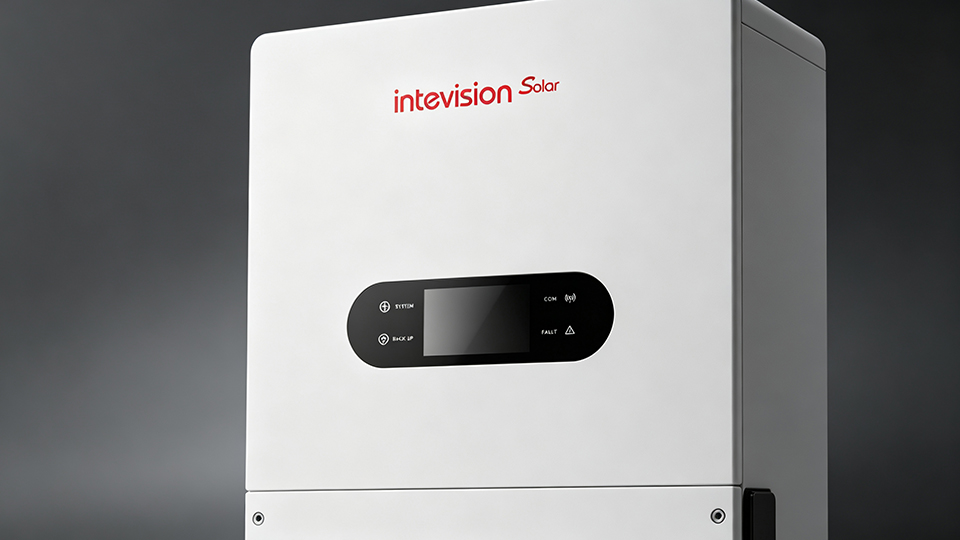

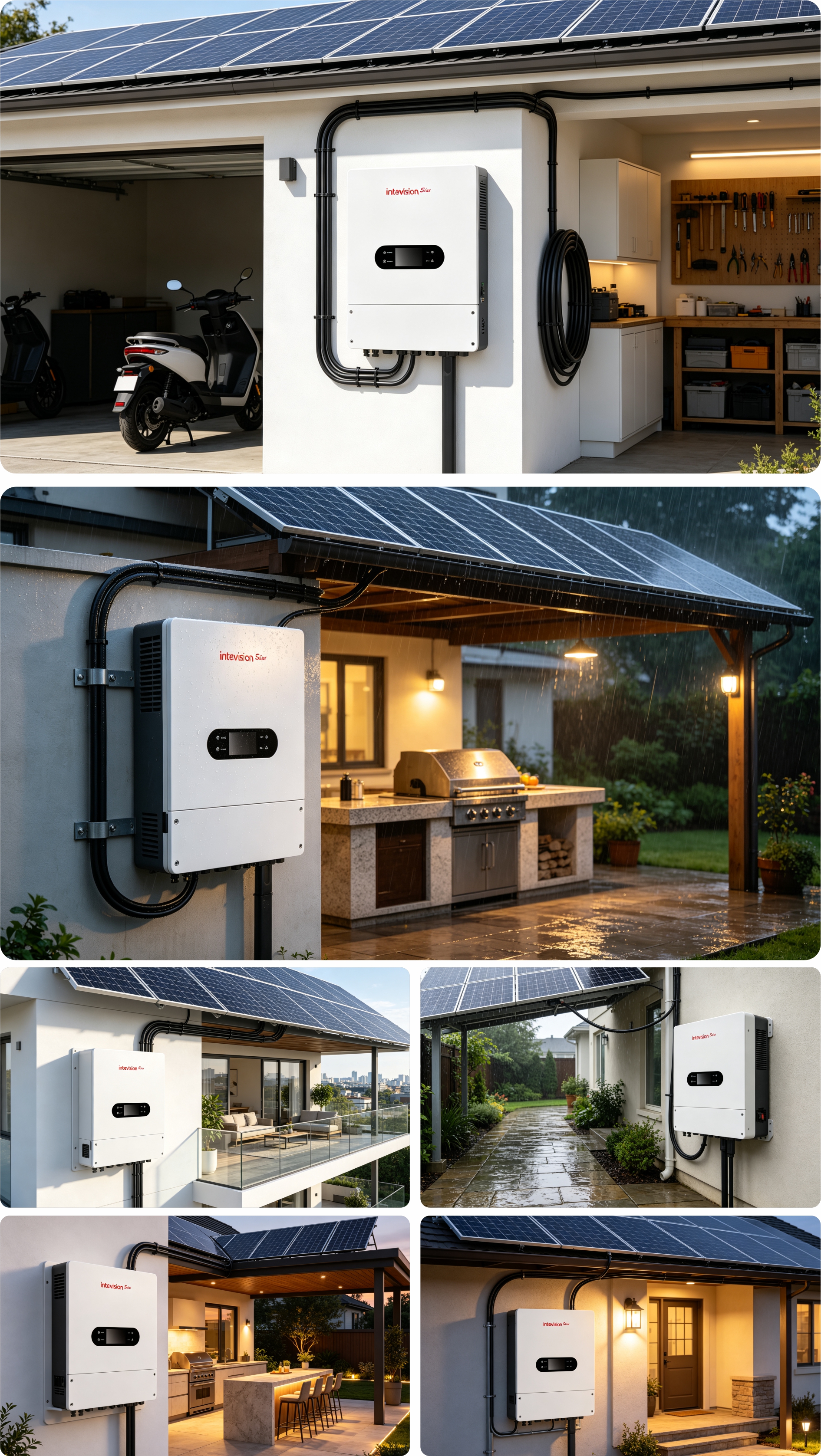

IN-L series

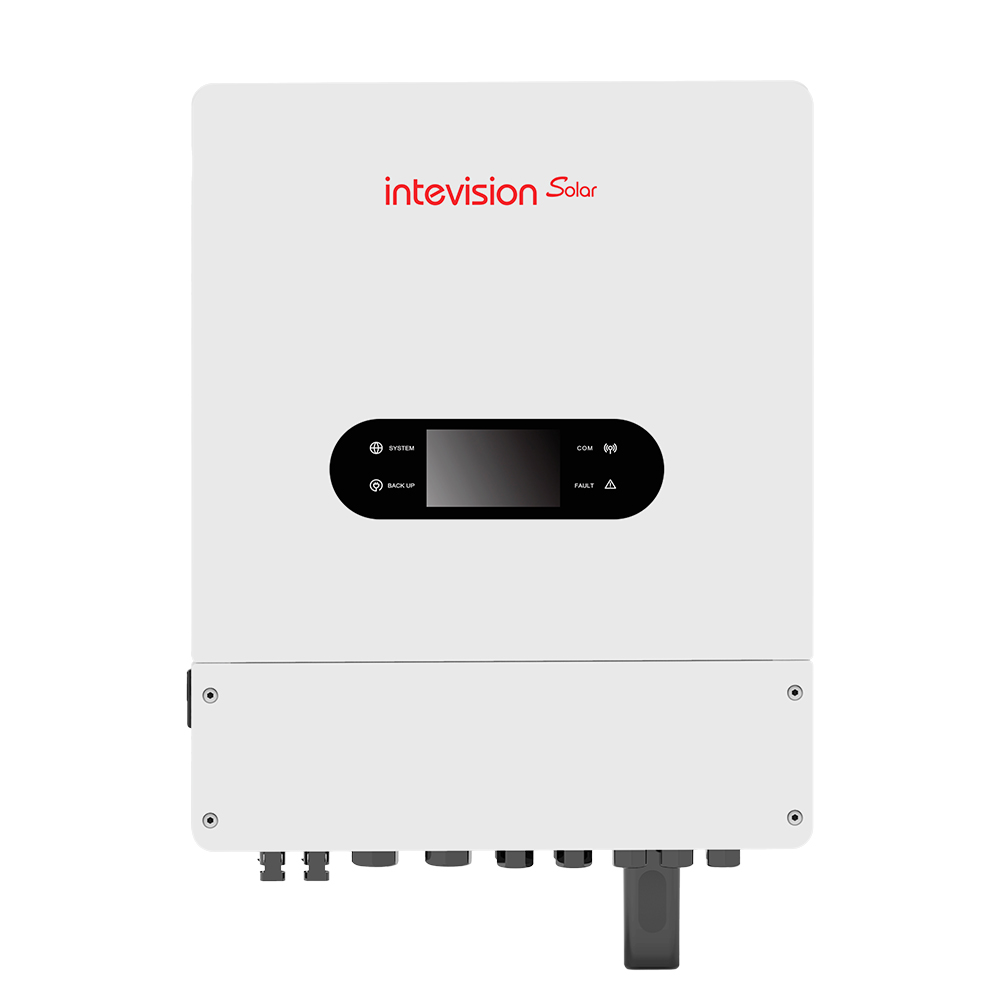

3kW / 4kW / 5kW / 6kW / 8kW

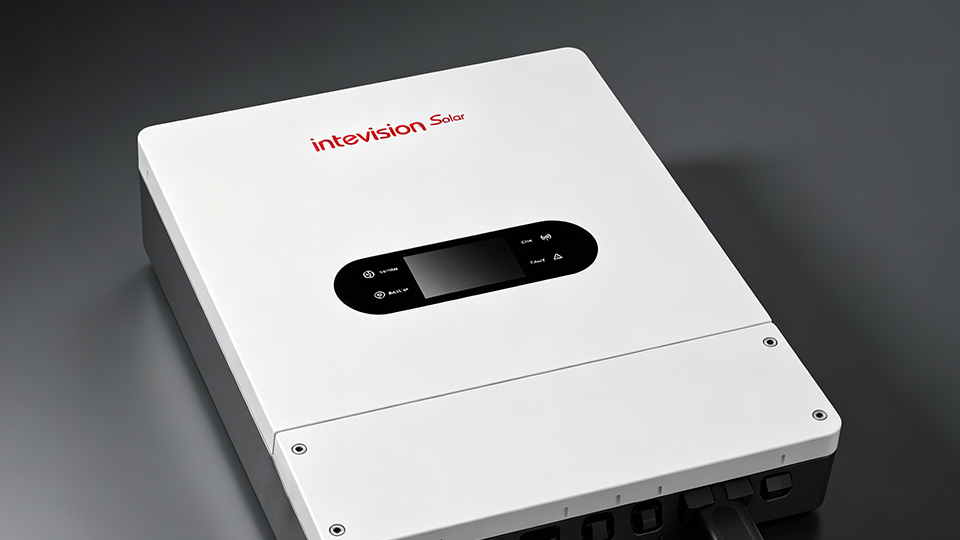

IN-L series
3kW / 4kW / 5kW / 6kW / 8kW
Battery Charging & Discharging
● Current up to 120 A
Switching as Uninter- ruptible
● Power Supply Transfer within 10 ms
Off-grid Peak Power
● Up to twice of power (15 s)
Battery
● Supports Lead-acid, Lithium, and Other Batteries, compatible with Cost-effective Solutions for differ- ent Markets
Battery Input Parameters
Battery Type
Lithium or Lead-acid Battery
Lithium or Lead-acid Battery
Lithium or Lead-acid Battery
Lithium or Lead-acid Battery
Lithium or Lead-acid Battery
Rated Battery Voltage (V)
48V
48V
48V
48V
48V
Maximum Charging Voltage (V)
≤60V(configurable)
≤60V(configurable)
≤60V(configurable)
≤60V(configurable)
≤60V(configurable)
Maximum Charging/Discharging Current (A)
75A
100A
120A
120A
190A
PV Input Parameters
Maximum DC Input Power (W)
6000W
8000W
10000W
12000W
16000W
Maximum DC Input Voltage (V)
500V
500V
500V
500V
500V
Operating Voltage Range (V)
150~450V
150~450V
150~450V
150~450V
150~450V
Start-up Voltage (V)
125V
125V
125V
125V
125V
Maximum Input Current (A)
18A
18A / 18A
18A / 18A
18A / 18A
18A / 18A
MPPT Channels
1
2
2
2
2
AC Output Parameters (Grid-tied)
Maximum Apparent Output Power (VA)
3300
4400
5500
6000
8800
Rated Output Voltage (V)
220/230
220/230
220/230
220/230
220/230
Rated Output Frequency (Hz)
50/60
50/60
50/60
50/60
50/60
Maximum Output Current (A)
15A
20A
25A
27A
40A
Output Power Factor
1(0.8 Leading~ 0.8 Lagging)
1(0.8 Leading~ 0.8 Lagging)
1(0.8 Leading~ 0.8 Lagging)
1(0.8 Leading~ 0.8 Lagging)
1(0.8 Leading~ 0.8 Lagging)
AC Output Parameters (Off-grid)
Rated Output Power (W)
3000
4000
5000
6000
8000
Peak Output Power (W)
>200%,15sec
>200%,15sec
>200%,15sec
>200%,15sec
>200%,15sec
Rated Output Voltage (V)
220/230
220/230
220/230
220/230
220/230
Rated Output Frequency (Hz)
50/60Hz
50/60Hz
50/60Hz
50/60Hz
50/60Hz
Maximum Output Current (A)
15A
20A
23A
25A
40A
Efficiency
Maximum Efficiency (PV)
97.6%
97.6%
97.6%
97.6%
97.6%
Maximum Efficiency (Battery)
94.5%
94.5%
94.5%
94.5%
94.5%
European Efficiency
97%
97%
97%
97%
97%
Protection
PV Reverse Polarity Protection
Integrated
Integrated
Integrated
Integrated
Integrated
PV Insulation Detection
Integrated
Integrated
Integrated
Integrated
Integrated
Residual Current Detection
Integrated
Integrated
Integrated
Integrated
Integrated
Output Overcurrent Protection
Integrated
Integrated
Integrated
Integrated
Integrated
Output Short-circuit Protection
Integrated
Integrated
Integrated
Integrated
Integrated
Output Overvoltage Protection
Integrated
Integrated
Integrated
Integrated
Integrated
General Parameters
Operating Temperature (°C)
-25~60°C (derating above 45°C)
-25~60°C (derating above 45°C)
-25~60°C (derating above 45°C)
-25~60°C (derating above 45°C)
-25~60°C (derating above 45°C)
Storage Temperature (°C)
-30~65°C
-30~65°C
-30~65°C
-30~65°C
-30~65°C
Relative Humidity
0~95%
0~95%
0~95%
0~95%
0~95%
Operating Altitude (m)
≤4000m (derating albove 2000m)
≤4000m (derating albove 2000m)
≤4000m (derating albove 2000m)
≤4000m (derating albove 2000m)
≤4000m (derating albove 2000m)
Cooling Method
Natural Cooling
Natural Cooling
Natural Cooling
Natural Cooling
Natural Cooling
Noise (dB)
<55dB
<55dB
<55dB
<55dB
<55dB
Weight (kg)
20kg
20kg
20kg
20kg
20kg
Dimensions (W × H × D mm)
198*427*554mm
198*427*554mm
198*427*554mm
198*427*554mm
198*427*554mm
IP Rating
IP66
IP66
IP66
IP66
IP66
Topology
High-frequency Isolation (Battery side)
High-frequency Isolation (Battery side)
High-frequency Isolation (Battery side)
High-frequency Isolation (Battery side)
High-frequency Isolation (Battery side)
Safety / EMC Certification
IEC62109, IEC61000,
IS16169 & IS16221(BIS)
IS16169 & IS16221(BIS)
IEC62109, IEC61000,
IS16169 & IS16221(BIS)
IS16169 & IS16221(BIS)
IEC62109, IEC61000,
IS16169 & IS16221(BIS)
IS16169 & IS16221(BIS)
IEC62109, IEC61000,
IS16169 & IS16221(BIS)
IS16169 & IS16221(BIS)
IEC62109, IEC61000,
IS16169 & IS16221(BIS)
IS16169 & IS16221(BIS)
Grid-tied Certification
IEC61727. EN50549-1,
VDE-4105, NRS-097-2-1,
OVE-Richtlinie R25, UNE217001/2,
Ordinace No.140
VDE-4105, NRS-097-2-1,
OVE-Richtlinie R25, UNE217001/2,
Ordinace No.140
IEC61727. EN50549-1,
VDE-4105, NRS-097-2-1,
OVE-Richtlinie R25, UNE217001/2,
Ordinace No.140
VDE-4105, NRS-097-2-1,
OVE-Richtlinie R25, UNE217001/2,
Ordinace No.140
IEC61727. EN50549-1,
VDE-4105, NRS-097-2-1,
OVE-Richtlinie R25, UNE217001/2,
Ordinace No.140
VDE-4105, NRS-097-2-1,
OVE-Richtlinie R25, UNE217001/2,
Ordinace No.140
IEC61727. EN50549-1,
VDE-4105, NRS-097-2-1,
OVE-Richtlinie R25, UNE217001/2,
Ordinace No.140
VDE-4105, NRS-097-2-1,
OVE-Richtlinie R25, UNE217001/2,
Ordinace No.140
IEC61727. EN50549-1,
VDE-4105, NRS-097-2-1,
OVE-Richtlinie R25, UNE217001/2,
Ordinace No.140
VDE-4105, NRS-097-2-1,
OVE-Richtlinie R25, UNE217001/2,
Ordinace No.140
Other Certifications
IEC61683. IEC62116.
EN50530. 1EC60068
EN50530. 1EC60068
IEC61683. IEC62116.
EN50530. 1EC60068
EN50530. 1EC60068
IEC61683. IEC62116.
EN50530. 1EC60068
EN50530. 1EC60068
IEC61683. IEC62116.
EN50530. 1EC60068
EN50530. 1EC60068
IEC61683. IEC62116.
EN50530. 1EC60068
EN50530. 1EC60068
