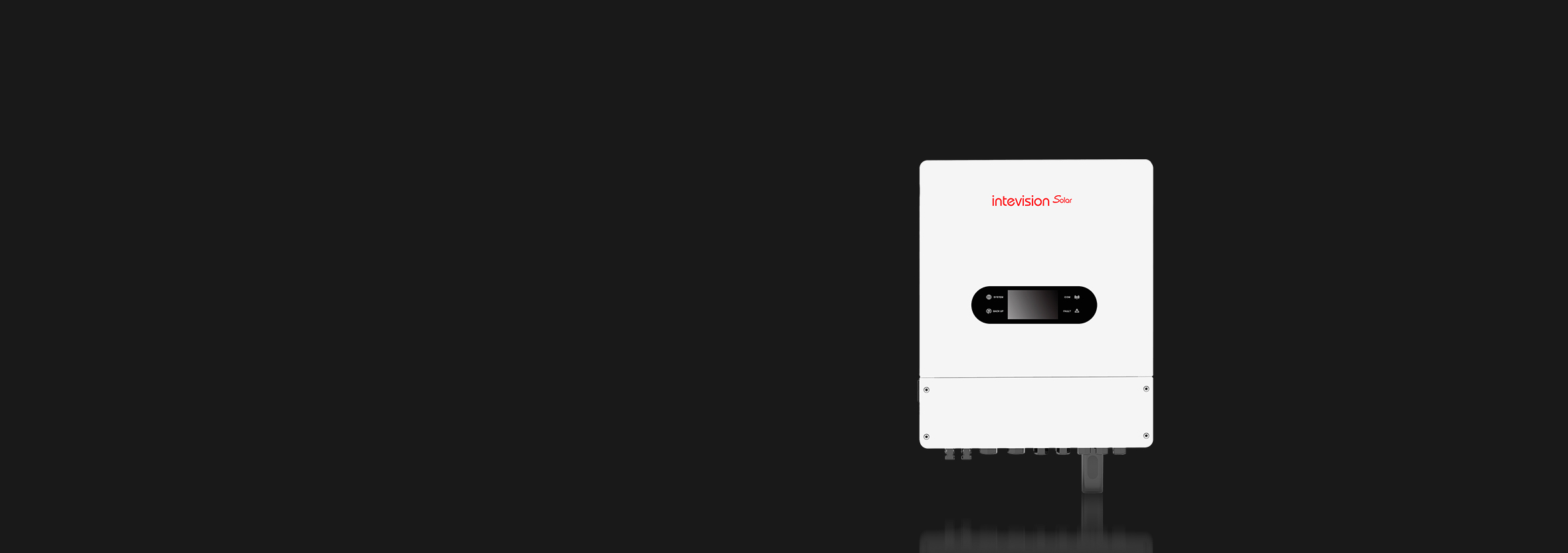

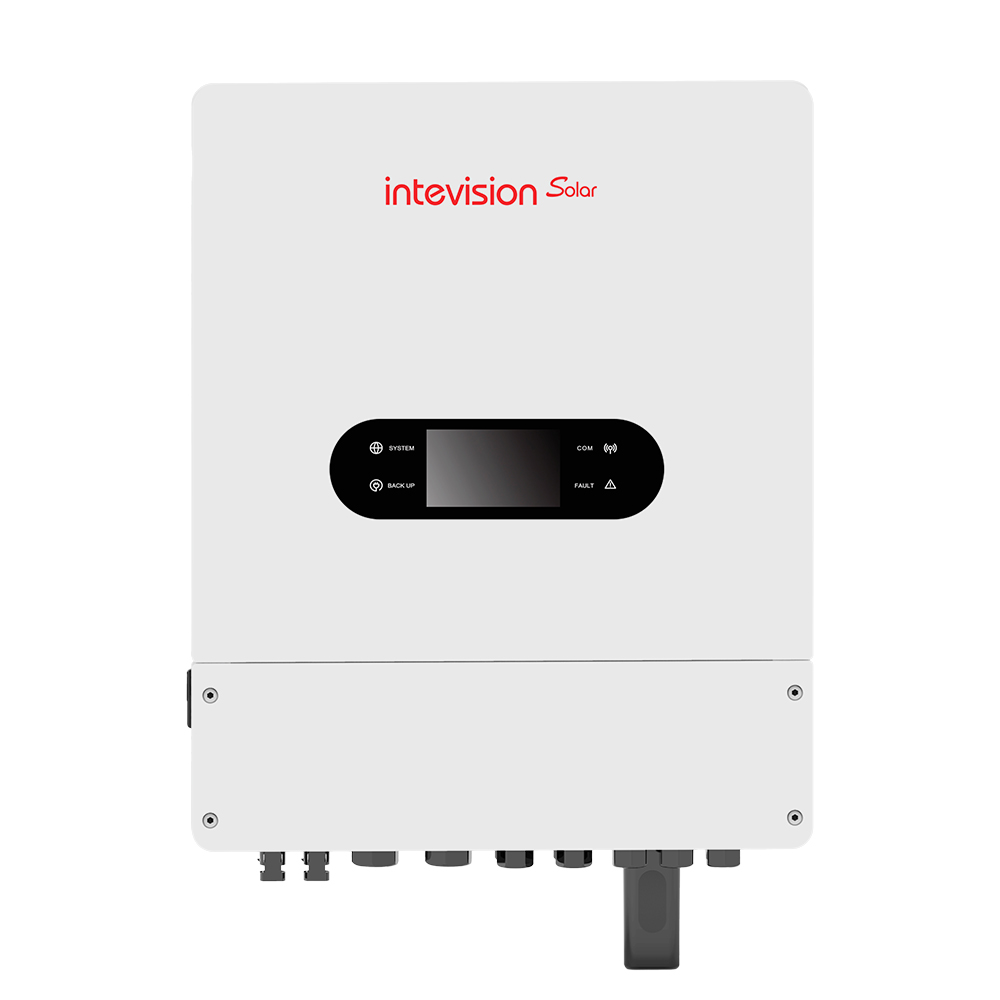

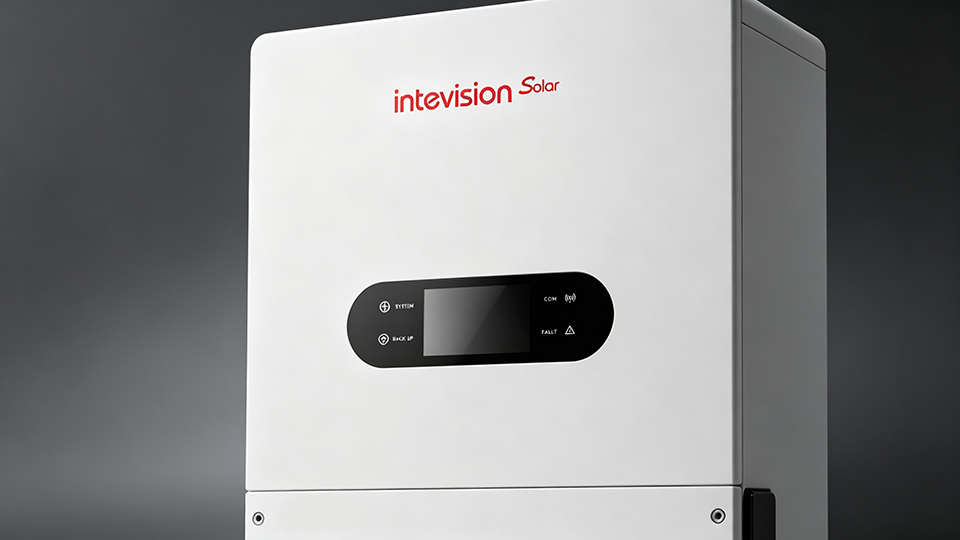

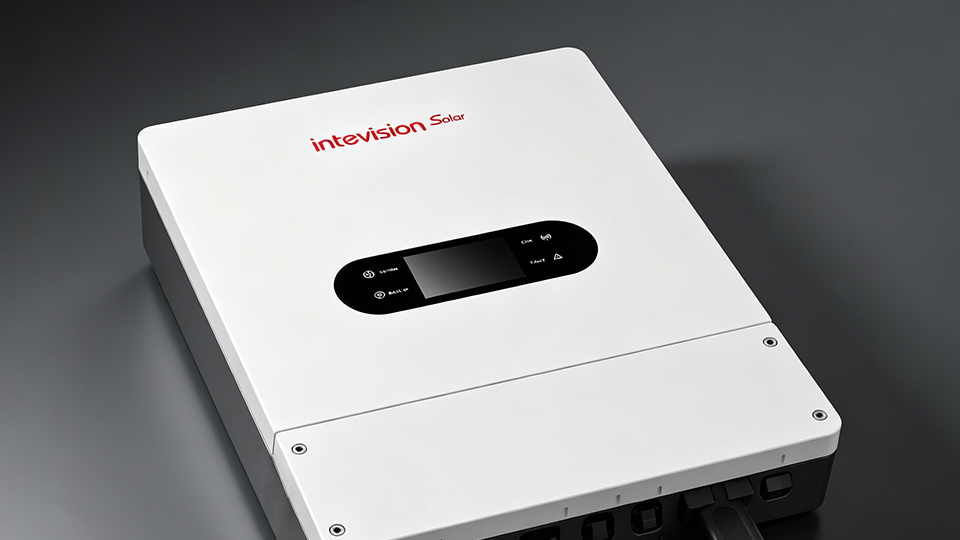

IN-M series
8kW / 10kW / 12kW / 15kW
IN-M series
8kW / 10kW / 12kW / 15kW
Grid-tied and Off-grid

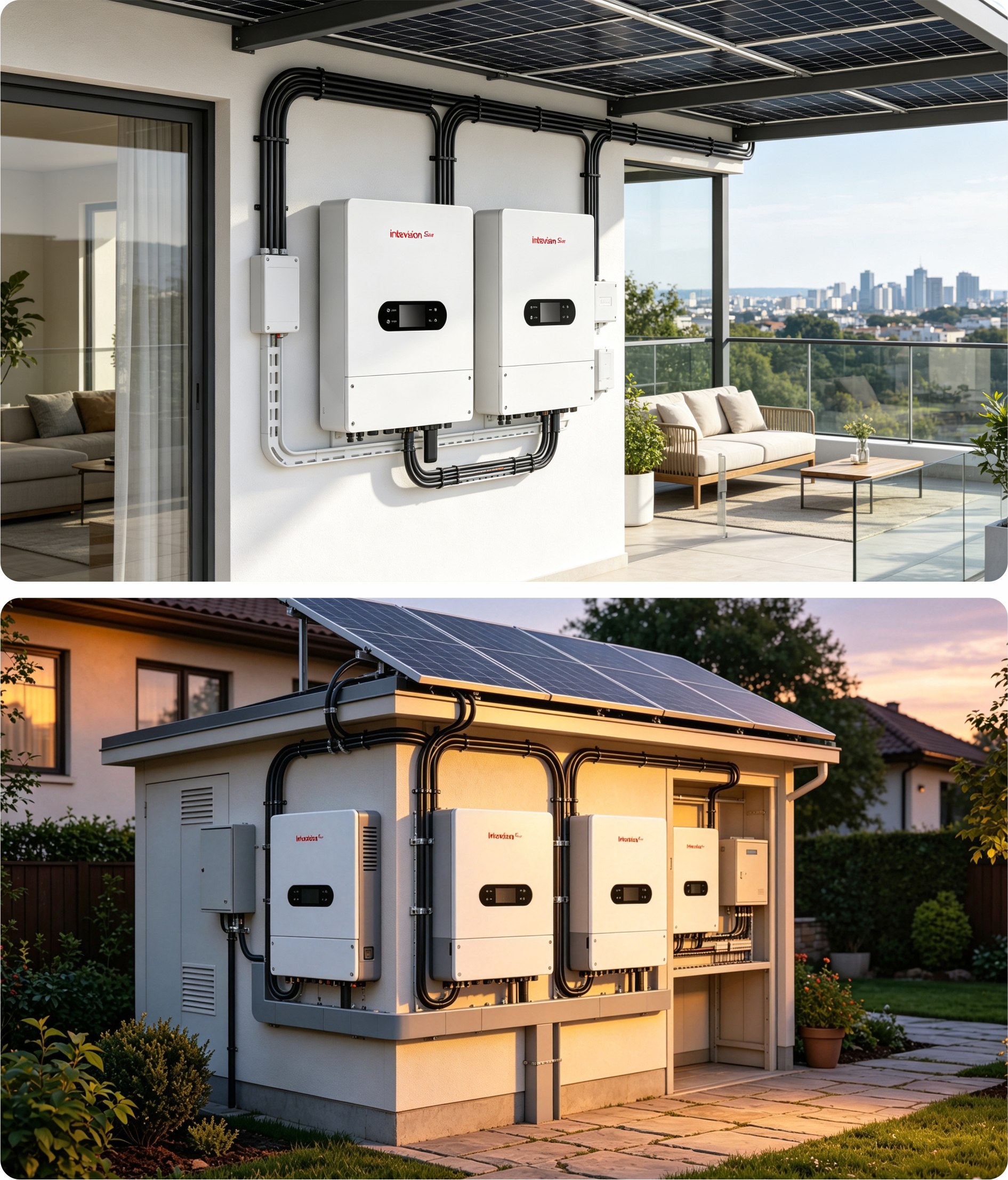

● For Grid-tied and Off-grid Operation ,supports Multiple Batteries in Parallel
Supports
● Supports Storing Energy from Diesel Generators
100%
● 100% Unbalanced Output
Current
● Maximum Charging / Discharging Current: 250A
Battery Input Parameters
Battery Type
Lithium or Lead-acid Battery
Lithium or Lead-acid Battery
Lithium or Lead-acid Battery
Lithium or Lead-acid Battery
Rated Battery Voltage (V)
48V
48V
48V
48V
Maximum Charging Voltage (V)
≤60V(configurable)
≤60V(configurable)
≤60V(configurable)
≤60V(configurable)
Maximum Charging/Discharging Current (A)
190A
210A
250A
280A
PV Input Parameters
Maximum DC Input Power (W)
16000W
20000W
24000W
30000W
Maximum DC Input Voltage (V)
1000V
1000V
1000V
1000V
Operating Voltage Range (V)
220~800V
220~800V
220~800V
220~800V
Start-up Voltage (V)
150V
150V
150V
150V
Maximum Input Current (A)
18 A / 18A
36 A / 18A
36 A / 18A
36 A / 18A
MPPT Channels
2
2
2
2
AC Output Parameters (Grid-tied)
Maximum Apparent Output Power (VA)
8800
11000
13200
16500
Rated Output Voltage (V)
380/400
380/400
380/400
380/400
Rated Output Frequency (Hz)
50/60
50/60
50/60
50/60
Maximum Output Current (A)
13.3A
16.7A
20A
25A
Output Power Factor
1(0.8 Leading ~ 0.8 Lagging)
1(0.8 Leading ~ 0.8 Lagging)
1(0.8 Leading ~ 0.8 Lagging)
1(0.8 Leading ~ 0.8 Lagging)
AC Output Parameters (Off-grid)
Rated Output Power (W)
8000
10000
12000
15000
Peak Output Power (W)
>200%,15sec
>200%,15sec
>200%,15sec
>200%,15sec
Rated Output Voltage (V)
380/400
380/400
380/400
380/400
Rated Output Frequency (Hz)
50/60Hz
50/60Hz
50/60Hz
50/60Hz
Maximum Output Current (A)
13.3A
16.7A
20A
24A
Efficiency
Maximum Efficiency (PV)
98%
98%
98%
98%
Maximum Efficiency (Battery)
94.5%
94.5%
94.5%
94.5%
European Efficiency
97.5%
97.5%
97.5%
97.5%
Protection
PV Reverse Polarity Protection
Integrated
Integrated
Integrated
Integrated
PV Insulation Detection
Integrated
Integrated
Integrated
Integrated
Residual Current Detection
Integrated
Integrated
Integrated
Integrated
Output Overcurrent Protection
Integrated
Integrated
Integrated
Integrated
Output Short-circuit Protection
Integrated
Integrated
Integrated
Integrated
Output Overvoltage Protection
Integrated
Integrated
Integrated
Integrated
General Parameters
Operating Temperature (°C)
-25~60°C (derating above 45°C)
-25~60°C (derating above 45°C)
-25~60°C (derating above 45°C)
-25~60°C (derating above 45°C)
Storage Temperature (°C)
-30~65°C
-30~65°C
-30~65°C
-30~65°C
Relative Humidity
0~95%
0~95%
0~95%
0~95%
Operating Altitude (m)
≤4000m (derating albove 2000m)
≤4000m (derating albove 2000m)
≤4000m (derating albove 2000m)
≤4000m (derating albove 2000m)
Cooling Method
Natural Cooling
Natural Cooling
Natural Cooling
Natural Cooling
Noise (dB)
<55dB
<55dB
<55dB
<55dB
Weight (kg)
38kg
38kg
38kg
38kg
Dimensions (W × H × D mm)
475*683*256mm
475*683*256mm
475*683*256mm
475*683*256mm
IP Rating
IP66
IP66
IP66
IP66
Topology
High-frequency Isolation
(Battery side)
(Battery side)
High-frequency Isolation
(Battery side)
(Battery side)
High-frequency Isolation
(Battery side)
(Battery side)
High-frequency Isolation
(Battery side)
(Battery side)
Safety / EMC Certification
IEC62109, IEC61000,
IS16169 & IS16221(BIS)
IS16169 & IS16221(BIS)
IEC62109, IEC61000,
IS16169 & IS16221(BIS)
IS16169 & IS16221(BIS)
IEC62109, IEC61000,
IS16169 & IS16221(BIS)
IS16169 & IS16221(BIS)
IEC62109, IEC61000,
IS16169 & IS16221(BIS)
IS16169 & IS16221(BIS)
Grid-tied Certification
IEC61727. EN50549-1,
VDE-4105, NRS-097-2-1,
OVE-Richtlinie R25, UNE217001/2,
Ordinace No.140
VDE-4105, NRS-097-2-1,
OVE-Richtlinie R25, UNE217001/2,
Ordinace No.140
IEC61727. EN50549-1,
VDE-4105, NRS-097-2-1,
OVE-Richtlinie R25, UNE217001/2,
Ordinace No.140
VDE-4105, NRS-097-2-1,
OVE-Richtlinie R25, UNE217001/2,
Ordinace No.140
IEC61727. EN50549-1,
VDE-4105, NRS-097-2-1,
OVE-Richtlinie R25, UNE217001/2,
Ordinace No.140
VDE-4105, NRS-097-2-1,
OVE-Richtlinie R25, UNE217001/2,
Ordinace No.140
IEC61727. EN50549-1,
VDE-4105, NRS-097-2-1,
OVE-Richtlinie R25, UNE217001/2,
Ordinace No.140
VDE-4105, NRS-097-2-1,
OVE-Richtlinie R25, UNE217001/2,
Ordinace No.140
Other Certifications
IEC61683. IEC62116.
EN50530. 1EC60068
EN50530. 1EC60068
IEC61683. IEC62116.
EN50530. 1EC60068
EN50530. 1EC60068
IEC61683. IEC62116.
EN50530. 1EC60068
EN50530. 1EC60068
IEC61683. IEC62116.
EN50530. 1EC60068
EN50530. 1EC60068
