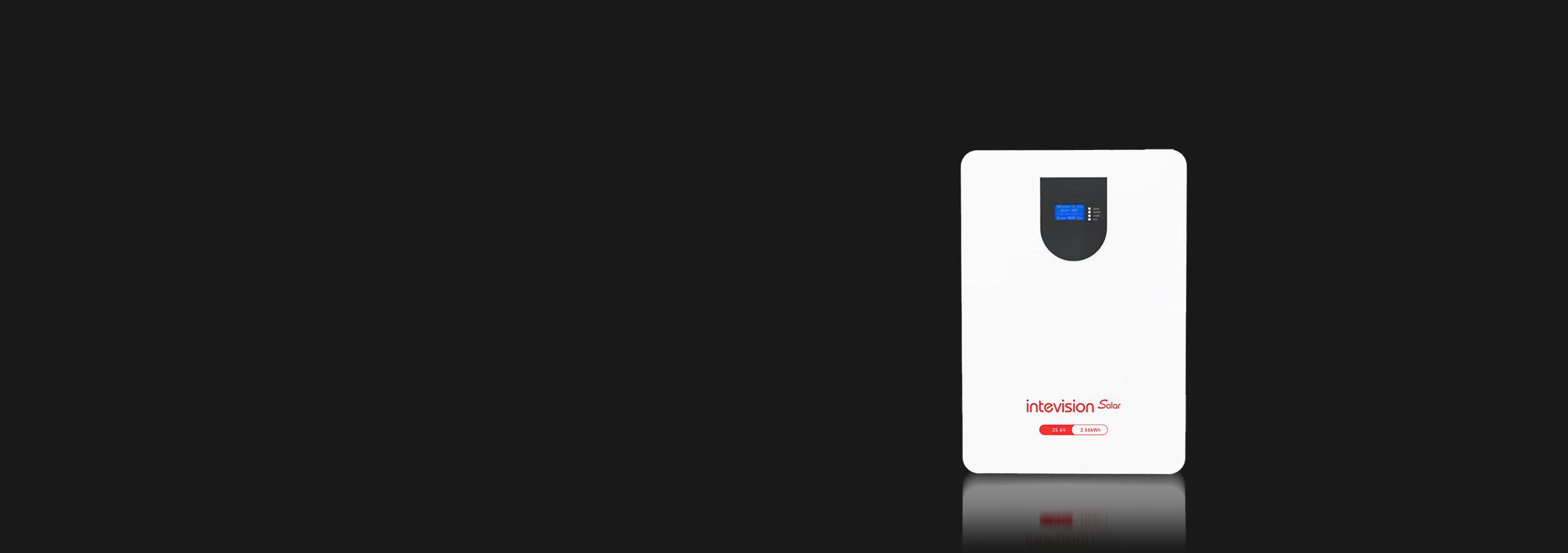

SI-M series
2.56kWh
SI-M series
2.56kWh
Safety
● Built-in battery management system, automatic protection
Parallel
● Support parallel connection, increase flexibility
High quality
● Uniquedesign patent
● Avarietyofspecifications and volumes to choose from;
● High energy density, high power;
BMS
● Customized BMS communication protocol Bluetooth,wifi,cloudmonitoring and other functions can be customized, panel customization;
Product Model
Standards
Nominal voltage(V)
25.6V
Nominal capacity(Ah)
100Ah
Nominal energy(kWh)
2.56kWh
Maximum output power (kW)
2.56kW
Assembly configuration
8S1P
Charging mode
CC/CP/CP
Charging current
0.2C(20A)
Maximum continuous charging current
/
Chargeing cut-off voltage (V)
29.2V/CELL
Dischargeing mode
CC/CP/CP
Dischargeing current
0.5C(50A)
Maximum continuous discharge current
100A
Dischargeing cut-off voltage (V)
21.6V
Display interface
LCD
Communication interface
RS485/RS232/CAN
Chargeing operating temperature
0 °C+50 °C
Dischargeing operating temperature
-10 °C+55 °C
Battery weight(kg)
~26kg
Battery size(mm)
L335*W165*H430
(without wheels)
(without wheels)
Package size(mm)
L400*230*H490mm
