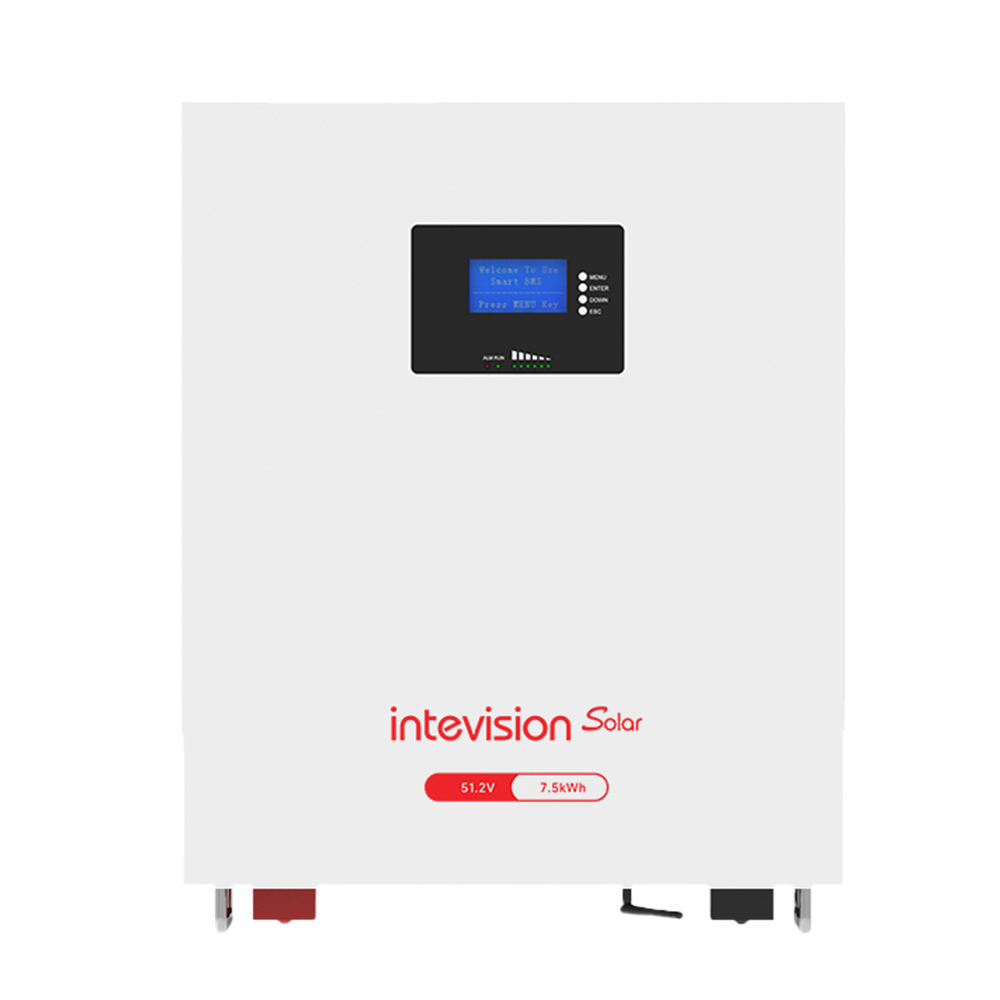

SI-P series
7.5kWh
SI-P series
7.5kWh
Safety
● Built-in battery management system, automatic protection
Parallel
● Support parallel connection, increase flexibility
High quality
● Uniquedesign patent
● Avarietyofspecifications and volumes to choose from;
● High energy density, high power;
BMS
● Customized BMS communication protocol Bluetooth,wifi,cloudmonitoring and other functions can be customized, panel customization;
Product Model
Standards
Nominal voltage(V)
51.2V
Nominal capacity(Ah)
150Ah
Nominal energy(kWh)
7.5kWh
Maximum output power (kW)
5.12kW
Assembly configuration
16S1P
Charging mode
CC/CV/CP
Maximum continuous charging current
30A
Charging current
100A
Chargeing cut-off voltage (V)
58.4V
Dischargeing mode
CC/CV/CP
Dischargeing current
0.2C(56A)
Maximum continuous discharge current
100A
Dischargeing cut-off voltage (V)
43.2V
Display interface
LCD
Communication interface
RS485/RS232/CAN
optional Wi-Fi and Bluetooth
optional Wi-Fi and Bluetooth
Chargeing operating temperature
0 °C+50 °C
Dischargeing operating temperature
-10 °C+55 °C
Battery weight(kg)
~72kg
Battery size(mm)
L490*W231.5*H620
(without wheels)
(without wheels)
Cycle
≥6000 cycles
