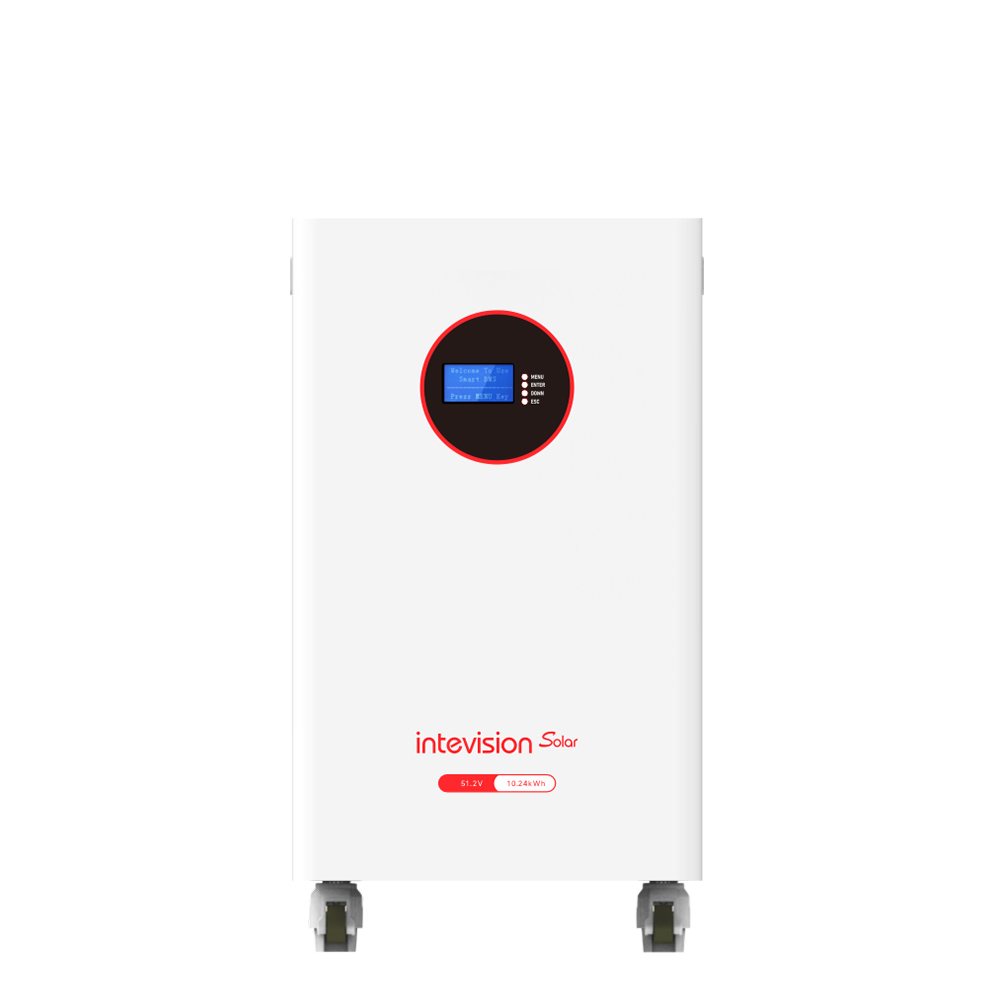

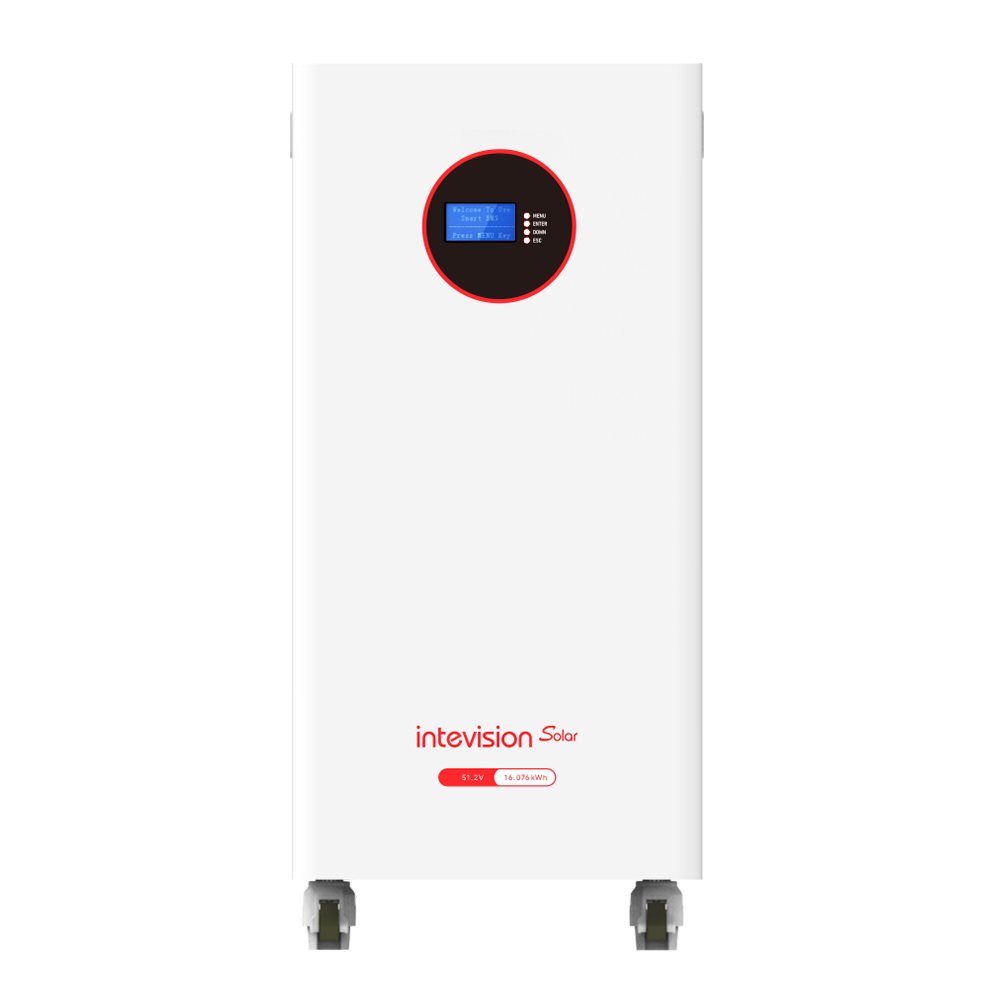

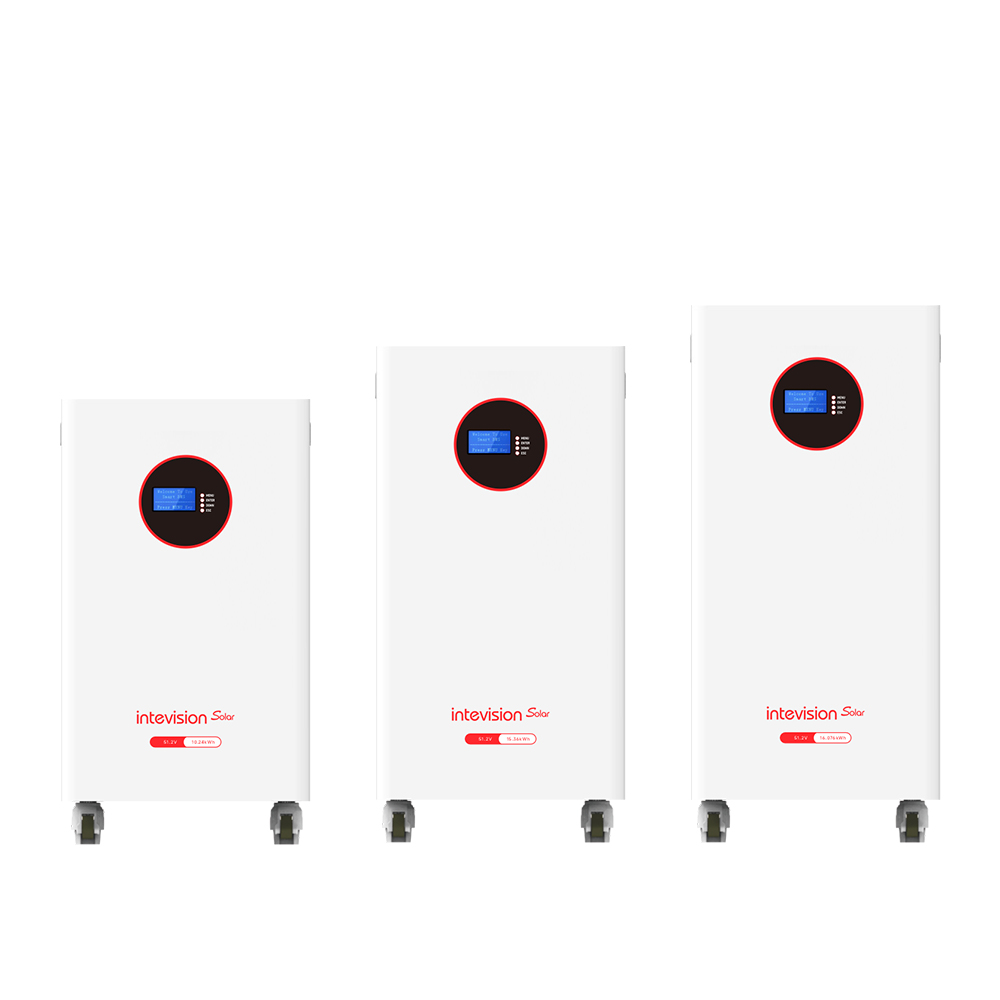

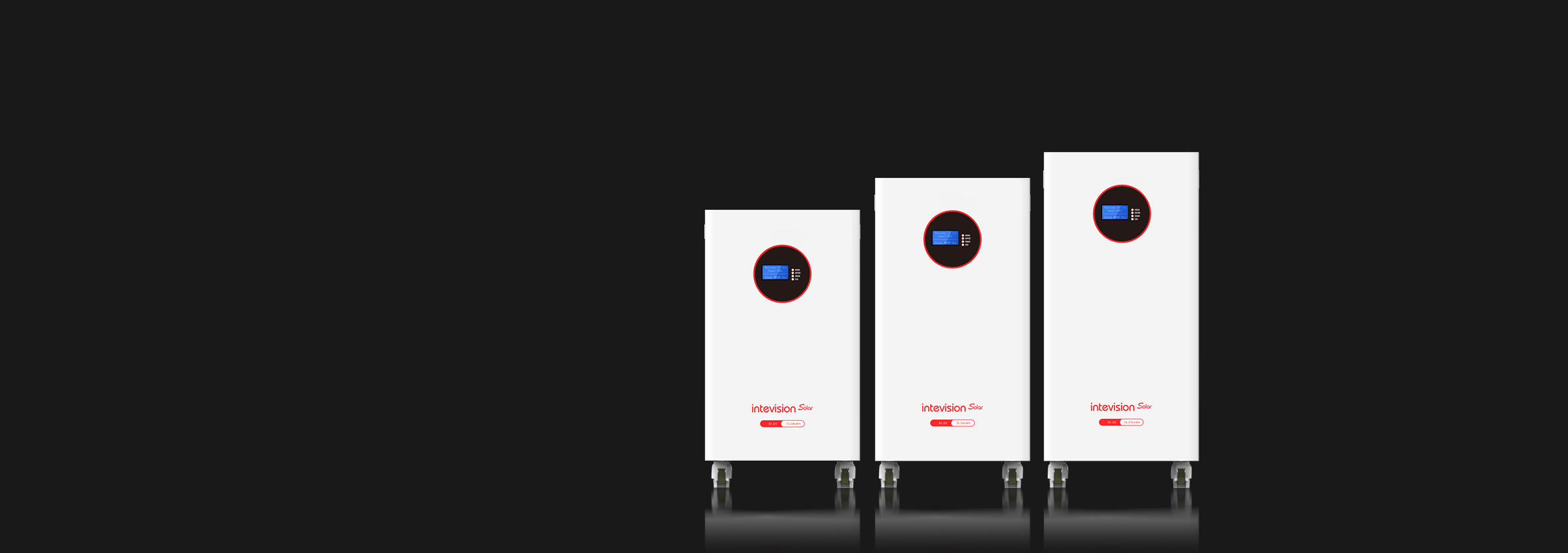

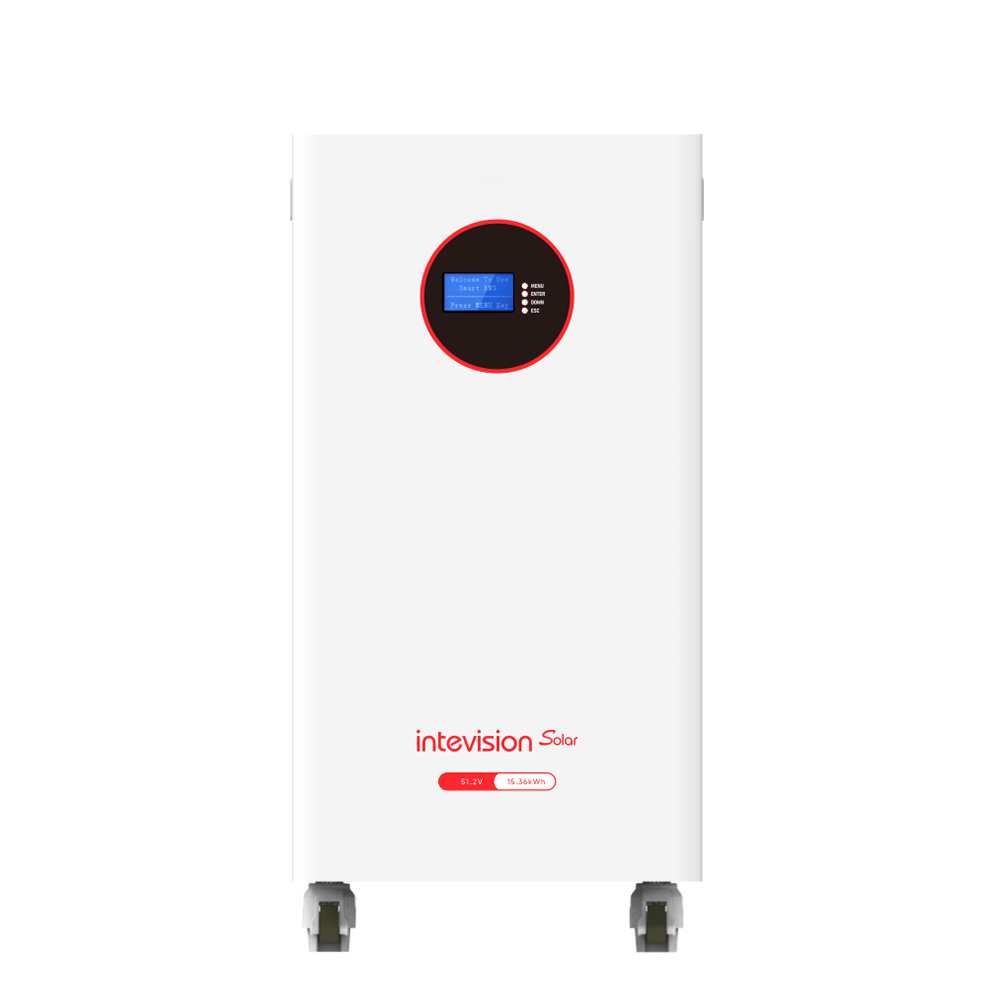

SI-Q series
10.24kWh / 15.36kWh / 16.076kWh
SI-Q series
10.24kWh / 15.36kWh / 16.076kWh
Safety
● Built-in battery management system, automatic protection
Parallel
● Support parallel connection, increase flexibility
High quality
● Uniquedesign patent
● Avarietyofspecifications and volumes to choose from;
● High energy density, high power;
BMS
● Customized BMS communication protocol Bluetooth,wifi,cloudmonitoring and other functions can be customized, panel customization;
Product Model
Standards
Nominal voltage(V)
51.2V
51.2V
51.2V
Nominal capacity(Ah)
200Ah
300Ah
314Ah
Nominal energy(kWh)
10.24kWh
15.36kWh
16.076kWh
Maximum output power (kW)
5.12kW
10.24kW
10.24kW
Assembly configuration
16S1P
16S1P
16S1P
Charging mode
CC/CV/CP
CC/CV/CP
CC/CV/CP
Maximum continuous charging current
0.2C(40A)
0.2C(60A)
60A
Charging current
100A
150A
200A
Chargeing cut-off voltage (V)
58.4V
58.4V
58.4V
Dischargeing mode
CC/CV/CP
CC/CV/CP
CC/CV/CP
Dischargeing current
0.5C(100A)
0.2C(60A)
0.2C(56A)
Maximum continuous discharge current
100A
200A
200A
Dischargeing cut-off voltage (V)
43.2V
43.2V
43.2V
Display interface
LCD
LCD
LCD
Communication interface
RS485/RS232/CAN
RS485/RS232/CAN
RS485/RS232/CAN
Chargeing operating temperature
0 °C+50 °C
0 °C+50 °C
0 °C+50 °C
Dischargeing operating temperature
-10 °C+55 °C
-10 °C+55 °C
-10 °C+55 °C
Battery weight(kg)
~91kg
~125kg
~127kg
Battery size(mm)
L420*W250*H680mm
L430*W250*H820
L420*W250*H820
Package size(mm)
L810*470*H400mm
L950*470*H400mm
/
